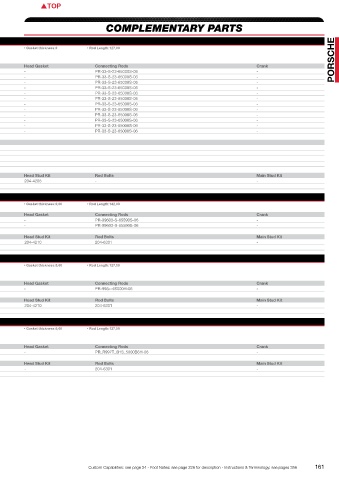

Porsche PISTONS COMPLEMENTARY PARTS

3.6L 911(964) (Air Cooled)
OEM Engine details 3,6 Ltr 12V Engine code:M64.01/02/03 • Displacement:3600 cc • Valves:12 • Comp. Ratio:11,3:1 • Head cc’s:90,00 • Gasket thickness:0 • Rod Length:127,00
Bore:100,00 • Stroke:76,40 • Block Ht:N/A
C/R with 1,00 mm head gasket and 0 deck PORSCHE
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
274637 100,00 Std, 31,80 40,8 0 11,5:1 23 J660U6-3937 482 R - PR-33-S-23-65000S-06 -
353306 100,00 Std, 31,80 40,8 0 11,5:1 23 JG1006-3937 - I,R,Y - PR-33-S-23-65000S-06 -
274046 102,00 2,00 31,80 38,8 0 11,5:1 23 J660U6-4016 494 R - PR-33-S-23-65000S-06 -
353308 102,00 2,00 31,80 38,8 0 11,5:1 23 JG3106-4020-2 - I,R,Y - PR-33-S-23-65000S-06 -
353310 103,15 3,15 31,80 37,7 0 11,5:1 23 JG31F6-4060-0 - I,M,R,Y - PR-33-S-23-65000S-06 -
353312 105,03 5,03 31,80 35,7 0 11,5:1 23 JG7706-4135-5 - I,M,R,Y - PR-33-S-23-65000S-06 -
274636 100,00 Std, 31,80 45,8 0 12,5:1 23 J660U6-3937 494 R - PR-33-S-23-65000S-06 -
353307 100,00 Std, 31,80 45,8 0 12,5:1 23 JG1006-3937 483 I,R,Y - PR-33-S-23-65000S-06 -
274045 102,00 2,00 31,80 44 0 12,5:1 23 J660U6-4016 506 R - PR-33-S-23-65000S-06 -
353309 102,00 2,00 31,80 44 0 12,5:1 23 JG3106-4020-2 - I,R,Y - PR-33-S-23-65000S-06 -
353311 103,15 3,15 31,80 43 0 12,5:1 23 JG31F6-4060-0 - I,M,R,Y - PR-33-S-23-65000S-06 -
353313 105,03 5,03 31,80 41,2 0 12,5:1 23 JG7706-4135-5 - I,M,R,Y - PR-33-S-23-65000S-06 -

Mahle Cylinders Bore (mm)
503WR4500 100,00
PC102-001 102,00 Machine in 109.00mm case
PC102-002 102,00 Slip in 107.00mm case
PC102-003 102.00 Machine in 109.00mm case / Shorter 114.5mm cylinder

Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 6B2463H(HX/0,025/0,25) - - 204-4206 - -
KING - - -
3.6L 911(996/997) (Water Cooled)
OEM Engine details 3,6 Ltr 24V Engine code:M96.03/05 • Displacement:3596 cc • Valves:24 • Comp. Ratio:11,3:1 • Head cc’s:N/A • Gasket thickness:0,60 • Rod Length:142,00
Bore:96,00 • Stroke:82,80 • Block Ht:N/A
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
357545C 96,00 Std, 32,87 -13 - 11,3:1 22 JG1006-3780 375 F,N,M - PR-99603-S-65590S-06 -
341069C 96,50 0,50 32,87 -13 - 11,3:1 22 XX9650-coated 375 F,I,M,Z - PR-99603-S-65590S-06 -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - 204-4210 204-6301 -
KING - - -
3.6L 911(996) Twin Turbo (Water Cooled)
OEM Engine details 3,6 Ltr 24V Engine code:M96.70 • Displacement:3596 cc • Valves:24 • Comp. Ratio:9,4:1 • Head cc’s:N/A • Gasket thickness:0,60 • Rod Length:127,00
Bore:100,00 • Stroke:76,40 • Block Ht:N/A
C/R with 1,00 mm head gasket
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
362143 100,00 Std, 33,10 -25,5 - 9,4:1 23 JG3706-3937 430 F,M,T - PR-993>-65000H-06 -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - 204-4210 204-6301 -
KING - - -
3.6L 911(997) Twin Turbo (Water Cooled)
OEM Engine details 3,6 Ltr 24V Engine code:M97.70 • Displacement:3596 cc • Valves:24 • Comp. Ratio:9,4:1 • Head cc’s:N/A • Gasket thickness:0,60 • Rod Length:127,00
Bore:100,00 • Stroke:76,40 • Block Ht:N/A
C/R with 1,00 mm head gasket
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
362143 100,00 Std, 33,10 -25,5 - 9,4:1 23 JG3706-3937 430 F,M,T - PR_R997T_0HS_5000B6H-06 -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - - 204-6301 -
KING - - -

160 **When exceeding 2 BAR boost and/or 500HP(4 Cylinder), please inquire for needed/available pin upgrades!! For 200+HP per cilinder custom part is adviced!!** Custom Capabilities: see page 24 - Foot Notes: see page 226 for description - Instructions & Terminology: see pages 356 161
