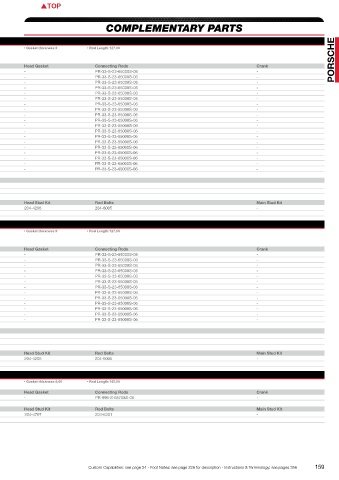

Porsche PISTONS COMPLEMENTARY PARTS

3.2L 911 (Air Cooled)
OEM Engine details 3,2 Ltr 12V Engine code:930 • Displacement:3164 cc • Valves:12 • Comp. Ratio:9,5:1 • Head cc’s:90,00 • Gasket thickness:0 • Rod Length:127,00
Bore:95,00 • Stroke:74,40 • Block Ht:N/A
C/R with 1,00 mm head gasket and 0 deck PORSCHE
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
274640 95,00 Std. 32,80 35,1 0 9,5:1 23 J650U6-3740 445 M,R - PR-33-S-23-65000S-06 -
353283 95,00 Std. 32,80 35,1 0 9,5:1 23 JG1006-3740 - I,R,Y - PR-33-S-23-65000S-06 -
274642 98,00 3,00 32,80 31,6 0 9,5:1 23 J612U6-3858 470 R - PR-33-S-23-65000S-06 -
353286 98,00 3,00 32,80 31,6 0 9,5:1 23 JG1006-3858 - I,R,Y - PR-33-S-23-65000S-06 -
353289 100,00 5,00 32,80 29,2 0 9,5:1 23 JG1006-3937 - I,R,Y - PR-33-S-23-65000S-06 -
274639 95,00 Std. 32,80 41,7 0 10,5:1 23 J650U6-3740 450 R - PR-33-S-23-65000S-06 -
353284 95,00 Std. 32,80 41,7 0 10,5:1 23 JG1006-3740 - I,R,Y - PR-33-S-23-65000S-06 -
274645 98,00 3,00 32,80 38,6 0 10,5:1 23 J612U6-3858 466 R - PR-33-S-23-65000S-06 -
353287 98,00 3,00 32,80 38,6 0 10,5:1 23 JG1006-3858 - I,R,Y - PR-33-S-23-65000S-06 -
274643 100,00 5,00 32,80 36,5 0 10,5:1 23 J660U6-3937 491 M,R - PR-33-S-23-65000S-06 -
353290 100,00 5,00 32,80 36,5 0 10,5:1 23 JG1006-3937 - I,R,Y - PR-33-S-23-65000S-06 -
353292 102,00 7,00 32,80 34,3 0 10,5:1 23 JG3106-4020-2 - I,M,R,Y - PR-33-S-23-65000S-06 -
274644 95,00 Std. 32,80 47 0 11,5:1 23 J650U6-3740 464 R - PR-33-S-23-65000S-06 -
353285 95,00 Std. 32,80 47 0 11,5:1 23 JG1006-3740 - I,R,Y - PR-33-S-23-65000S-06 -
274646 98,00 3,00 32,80 44,2 0 11,5:1 23 J612U6-3858 477 M,R - PR-33-S-23-65000S-06 -
353288 98,00 3,00 32,80 44,2 0 11,5:1 23 JG1006-3858 - I,R,Y - PR-33-S-23-65000S-06 -
274647 100,00 5,00 32,80 42,3 0 11,5:1 23 J660U6-3937 496 M,R - PR-33-S-23-65000S-06 -
353291 100,00 5,00 32,80 42,3 0 11,5:1 23 JG1006-3937 - I,R,Y - PR-33-S-23-65000S-06 -
353293 102,00 7,00 32,80 40,4 0 11,5:1 23 JG3106-4020-2 - I,M,R,Y - PR-33-S-23-65000S-06 -

Mahle Cylinders Bore (mm)
503WR2800 95,00
PC98-001 98,00

Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL See ACL section for correct housing bore* - - 204-4206 204-6005 -
KING - - -
3.3L 911(964) Turbo (Air Cooled)
OEM Engine details 3,3 Ltr 12V Engine code:M30.69/930,60/930,66 • Displacement:3299 cc • Valves:12 • Comp. Ratio:7,0:1 • Head cc’s:90,00 • Gasket thickness:0 • Rod Length:127,00
Bore:97,00 • Stroke:74,40 • Block Ht:N/A
C/R with 1,00 mm head gasket and 0 deck
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
353296 97,00 Std. 32,80 5,8 0 7,0:1 23 JG1006-3819 - I,R,T,Y - PR-33-S-23-65000S-06 -
353297 97,00 Std. 32,80 12,9 0 7,5:1 23 JG1006-3819 438 I,R,T,Y - PR-33-S-23-65000S-06 -
353301 98,00 1,00 32,80 11,3 0 7,5:1 23 JG1006-3858 - I,R,T,Y - PR-33-S-23-65000S-06 -
353304 100,00 3,00 32,80 8,1 0 7,5:1 23 JG1006-3937 446 I,R,T,Y - PR-33-S-23-65000S-06 -
331158 97,00 Std. 32,80 17,5 0 8,0:1 23 JG1006-3819 - R,T - PR-33-S-23-65000S-06 -
353298 97,00 Std. 32,80 18,9 0 8,0:1 23 JG1006-3819 - I,R,T,Y - PR-33-S-23-65000S-06 -
274648 98,00 1,00 32,80 17,5 0 8,0:1 23 J612U6-3858 439 R,T - PR-33-S-23-65000S-06 -
353302 98,00 1,00 32,80 17,5 0 8,0:1 23 JG1006-3858 - I,R,T,Y - PR-33-S-23-65000S-06 -
353305 100,00 3,00 32,80 14,5 0 8,0:1 23 JG1006-3937 - I,R,T,Y - PR-33-S-23-65000S-06 -
353299 97,00 Std. 32,80 24.2 0 8,5:1 23 JG1006-3819 - I,R,T,Y - PR-33-S-23-65000S-06 -
331159 97,00 Std. 32,80 22,8 0 8,5:1 23 JG1006-3819 - R,T - PR-33-S-23-65000S-06 -
274649 98,00 1,00 32,80 22,8 0 8,5:1 23 J612U6-3858 441 R,T - PR-33-S-23-65000S-06 -
353303 98,00 1,00 32,80 22,8 0 8,5:1 23 JG1006-3858 - I,R,T,Y - PR-33-S-23-65000S-06 -
Mahle Cylinders Bore (mm)
503WR2000 97,00
PC98-001 98,00

Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 6B2463H(HX/0,025/0,25) - - 204-4206 204-6005 -
KING - - -
3.4L 911(996) (Water Cooled)
OEM Engine details 3,4 Ltr 24V Engine code:M96.01/02/04 • Displacement:3387 cc • Valves:24 • Comp. Ratio:11,3:1 • Head cc’s:N/A • Gasket thickness:0,60 • Rod Length:145,00
Bore:96,00 • Stroke:78,00 • Block Ht:N/A
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
328524C 96,00 Std. 32,28 -16 - 11,3:1 22 JG5001-3780 371 F,I,M - PR-996-S-65708S-06 -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - 204-4707 204-6301 -
KING - - -

158 **When exceeding 2 BAR boost and/or 500HP(4 Cylinder), please inquire for needed/available pin upgrades!! For 200+HP per cilinder custom part is adviced!!** Custom Capabilities: see page 24 - Foot Notes: see page 226 for description - Instructions & Terminology: see pages 356 159
