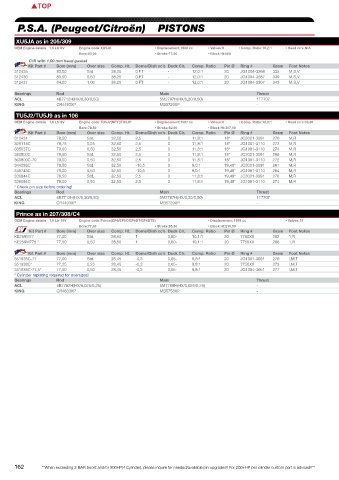

P.S.A. (Peugeot/Citroën) PISTONS COMPLEMENTARY PARTS

XU5JA as in 205/309
OEM Engine details 1,6 Ltr 8V Engine code:XU5JA • Displacement:1580 cc • Valves:8 • Comp. Ratio:10,2:1 • Head cc’s:N/A • Gasket thickness:1,27 • Rod Length:150,50 .S.A.
Bore:83,00 • Stroke:73,00 • Block Ht:N/A
C/R with 1,00 mm head gasket P
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
312435 83,00 Std. 38,25 0 FT - 12,0:1 20 JG1004-3268 335 M,S,V - - -
312436 83,50 0,50 38,25 0 FT - 12,0:1 20 JG1004-3287 339 M,S,V - - -
312437 84,00 1,00 38,25 0 FT - 12,0:1 20 JG1004-3307 343 M,S,V - - -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B7712H(HX/0,30/0,50) 5M2797H(HX/0,30/0,50) 1T7707 - - -
KING CR4493XP MB5729XP -
TU5J2/TU5J9 as in 106
OEM Engine details 1,6 Ltr 8V Engine code:TU5J2(NFY)/TU5JP • Displacement:1587 cc • Valves:8 • Comp. Ratio:10,2:1 • Head cc’s:33,00 • Gasket thickness:1,37 • Rod Length:133,50
Bore:78,50 • Stroke:82,00 • Block Ht:207,00
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
312431 78,50 Std. 32,50 2,5 0 11,8:1 18* JC3001-3091 270 M,R - - -
329114C 78,75 0,25 32,50 2,5 0 11,8:1 18* JG1001-3110 272 M,R - - -
335037C 79,00 0,50 32,50 2,5 0 11,8:1 18* JG1001-3110 274 M,R - - -
360800C 78,50 Std. 32,50 2,5 0 11,8:1 18* JC3001-3091 268 M,R - - -
360800C-79 79,00 0,50 32,50 2,5 0 11,8:1 18* JG1001-3110 272 M,R - - -
344093C 78,50 Std. 32,50 -10,5 0 9,0:1 19,48* JC3001-3091 261 M,R - - -
349743C 79,00 0,50 32,50 -10,5 0 9,0:1 19,48* JG1001-3110 264 M,R - - -
336844C 78,50 Std. 32,50 2,5 0 11,8:1 19,48* JC3001-3091 270 M,R - - -
336094C 79,00 0,50 32,50 2,5 0 11,8:1 19,48* JG1001-3110 274 M,R - - -
* Check pin size before ordering!
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B7712H(HX/0,30/0,50) 5M2797H(HX/0,30/0,50) 1T7707 - - -
KING CR4493XP MB5729XP -
Prince as in 207/308/C4
OEM Engine details 1,6 Ltr 16V Engine code:Prince(EP6/EP6C/EP6DT/EP6DTS) • Displacement:1598 cc • Valves:16 • Comp. Ratio:11,0:1/10,5:1 • Head cc’s:37,60 • Gasket thickness:0,90 • Rod Length:138,50
Bore:77,00 • Stroke:85,80 • Block Ht:210,50
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
KE259M77 77,00 Std. 28,50 1 0,60- 10,1:1 20 7700XX 282 1,R C4617-036/338476R 005EA14139* / R-PEU-002-I (Tapered) C-MIN-002
KE259M775 * 77,50 0,50 28,50 1 0,60- 10,1:1 20 7750XX 286 1,R C4617-036/338476R 005EA14139* / R-PEU-002-I (Tapered) C-MIN-002

Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
351938C-77 77,00 Std. 28,45 -0,3 0,65- 9,8:1 20 JG1001-3031 270 I,M,T C4617-036/338476R 005EA14139* / R-PEU-002-I (Tapered fits OE) C-MIN-002
351938C* 77,25 0,25 28,45 -0,3 0,65- 9,8:1 20 7750XX 273 I,M,T C4617-036/338476R 005EA14139* / R-PEU-002-I (Tapered fits OE) C-MIN-002
351938C-77,5* 77,50 0,50 28,45 -0,3 0,65- 9,8:1 20 JG1004-3051 277 I,M,T C4617-036/338476R 005EA14139* / R-PEU-002-I (Tapered fits OE) C-MIN-002
* Cylinder replating required for oversizes! * Straight SE,don’t fit OE Pistons!
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B7787H(HX/0,025/0,25) 5M7788H(HX/0,025/0,25) - 201-4304 201-6305 201-5401
KING CR4633XP MB5758XP -

162 **When exceeding 2 BAR boost and/or 500HP(4 Cylinder), please inquire for needed/available pin upgrades!! For 200+HP per cilinder custom part is adviced!!** Custom Capabilities: see page 24 - Foot Notes: see page 226 for description - Instructions & Terminology: see pages 356 163
