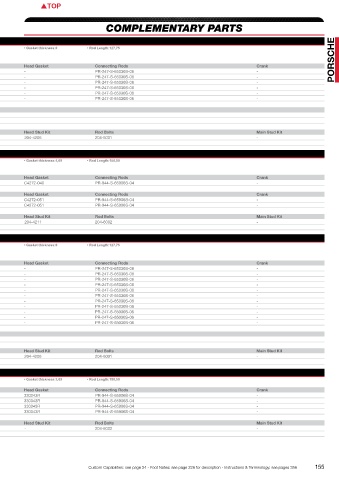

Porsche PISTONS COMPLEMENTARY PARTS
2.4L 911 (Air Cooled)
OEM Engine details 2,4 Ltr 12V Engine code:911 • Displacement:2341 cc • Valves:12 • Comp. Ratio:8,5:1 • Head cc’s:68,00 • Gasket thickness:0 • Rod Length:127,75
Bore:84,00 • Stroke:70,40 • Block Ht:N/A
C/R with 1,00 mm head gasket and 0 deck PORSCHE
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
353229 84,00 Std. 33,90 27,7 0 9,5:1 22 JG1006-3307 - I,M,R,Y - PR-247-S-65030S-06 -
353231 85,00 1,00 33,90 26,8 0 9,5:1 22 JG1006-3346 - I,M,R,Y - PR-247-S-65030S-06 -
353233 87,50 3,50 33,90 24,3 0 9,5:1 22 JG1006-3445 - I,M,R,Y - PR-247-S-65030S-06 -
353230 84,00 Std. 33,90 32,5 0 10,5:1 22 JG1006-3307 - I,M,R,Y - PR-247-S-65030S-06 -
353232 85,00 1,00 33,90 31,7 0 10,5:1 22 JG1006-3346 - I,M,R,Y - PR-247-S-65030S-06 -
353234 87,50 3,50 33,90 29,5 0 10,5:1 22 JG1006-3445 - I,M,R,Y - PR-247-S-65030S-06 -
Mahle Cylinders Bore (mm)
503WR1900 84,00
PC86-002 86,70
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 6B2452H(HX/0,025/0,25) - - 204-4206 204-6001 -
KING CR6855XP - -
2,5L 944 (Water Coolded)
OEM Engine details 2,5 Ltr 8V Engine code:M44.50/51/52 • Displacement:2479 cc • Valves:8 • Comp. Ratio:8,0:1 • Head cc’s:57,00 • Gasket thickness:1,09 • Rod Length:150,00
Bore:100,00 • Stroke:78,90 • Block Ht:230,30
Wiseco Piston Kit
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
KE538M100 100,00 Std. 40,80 -25,7 0 8,0:1 24 10000XX 533 F,I,M,N C4272-040 PR-944-S-65906S-04 -
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
310599C 100,00 Std. 40,75 -28,4 0,05- 7,5:1 24 XH10000 477 I,M,N C4272-051 PR-944-S-65906S-04 -
293449C 100,50 0,50 40,75 -28,4 0,05- 7,5:1 24 RA074-3957 485 I,M,N C4272-051 PR-944-S-65906S-04 -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B2475H(HX/0,025/0,25) - - 204-4211 204-6002 -
KING - - -
2.7L 911 (Air Cooled)
OEM Engine details 2,7 Ltr 12V Engine code:911 • Displacement:2687 cc • Valves:12 • Comp. Ratio:8,5:1 • Head cc’s:68,00 • Gasket thickness:0 • Rod Length:127,75
Bore:90,00 • Stroke:70,40 • Block Ht:N/A
C/R with 1,00 mm head gasket and 0 deck
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
261663 90,00 Std. 34,00 21,8 0 9,5:1 21 JG1006-3543 404 R - PR-247-S-65030S-06 -
353235 90,00 Std. 33,90 21,8 0 9,5:1 21 JG1006-3543 - I,R,Y - PR-247-S-65030S-06 -
261665 92,00 2,00 34,00 19,7 0 9,5:1 21 JG1006-3622 419 M,R - PR-247-S-65030S-06 -
353237 92,00 2,00 33,90 19,7 0 9,5:1 21 JG1006-3622 386 I,R,Y - PR-247-S-65030S-06 -
353239 93,00 3,00 33,90 18,6 0 9,5:1 21 JG1006-3661 - I,M,R,Y - PR-247-S-65030S-06 -
261664 90,00 Std. 34,00 27,3 0 10,5:1 21 JG1006-3543 403 R - PR-247-S-65030S-06 -
353236 90,00 Std. 33,90 27,3 0 10,5:1 21 JG1006-3543 386 I,R,Y - PR-247-S-65030S-06 -
261666 92,00 2,00 34,00 25,5 0 10,5:1 21 JG1006-3622 418 R - PR-247-S-65030S-06 -
353238 92,00 2,00 33,90 25,5 0 10,5:1 21 JG1006-3622 - I,R,Y - PR-247-S-65030S-06 -
353240 93,00 3,00 33,90 24,5 0 10,5:1 21 JG1006-3661 - I,M,R,Y - PR-247-S-65030S-06 -
350530C 90,00 Std. 34,00 37,3 0 13,0:1 21 JG1006-3543 430 M,R - PR-247-S-65030S-06 -
Mahle Cylinders Bore (mm)
503WR2400 90,00
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - 204-4206 204-6001 -
KING - - -
3.0L 944S2/968 (Water Coolded)
OEM Engine details 3,0 Ltr 16V Engine code:M44.41/43/44 • Displacement:2990 cc • Valves:16 • Comp. Ratio:10,9:1 • Head cc’s:N/A • Gasket thickness:1,09 • Rod Length:150,00
Bore:104,00 • Stroke:88,00 • Block Ht:230,30
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
349640C 104,00 Std. 36,09 -25 0,21- 10,9:1 24 XS10400 450 I,M,R 330043R PR-944-S-65906S-04 -
308955C 104,50 0,50 36,09 -25 0,21- 10,9:1 24 J91201-4120-3 459 A,I,M,R 330043R PR-944-S-65906S-04 -
358271C 104,50 0,50 36,09 -25 0,21- 10,9:1 24 RA084-4120 459 A,I,M,R,Z 330043R PR-944-S-65906S-04 -
361837C 105,00 1,00 36,00 -28,5 0,21- 10,9:1 24 J750F1-4135-5 464 A,I,M,R 330043R PR-944-S-65906S-04 -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - - 204-6002 -
KING - - -
154 **When exceeding 2 BAR boost and/or 500HP(4 Cylinder), please inquire for needed/available pin upgrades!! For 200+HP per cilinder custom part is adviced!!** Custom Capabilities: see page 24 - Foot Notes: see page 226 for description - Instructions & Terminology: see pages 356 155
