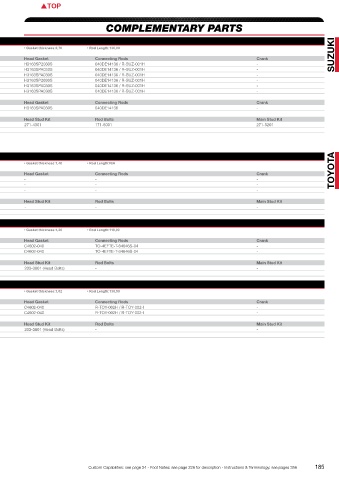

Suzuki PISTONS COMPLEMENTARY PARTS
M16A as in Swift Sport
OEM Engine details 1,6 Ltr 16V Engine code: M16A • Displacement:1586 cc • Valves:16 • Comp. Ratio:11,1:1 • Head cc’s:28,00 • Gasket thickness:0,70 • Rod Length:136,00
Bore:78,00 • Stroke:83,00 • Block Ht:208,00 SUZUKI
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
KE248M78 78,00 Std. 30,00 -15 0,50- 9,0:1 20 7800XX 266 M H3163SP2030S 040DE14136 / R-SUZ-001H -
KE248M785 78,50 0,50 30,00 -15 0,50- 9,0:1 20 7850XX 270 M H3163SPA030S 040DE14136 / R-SUZ-001H -
KE248M79 79,00 1,00 30,00 -15 0,50- 9,0:1 20 7900XX 274 M H3163SPA030S 040DE14136 / R-SUZ-001H -
KE249M78 78,00 Std. 30,00 -1,5 0,50- 12,0:1 20 7800XX 267 M,R H3163SP2030S 040DE14136 / R-SUZ-001H -
KE249M785 78,50 0,50 30,00 -1,5 0,50- 12,0:1 20 7850XX 272 M,R H3163SPA030S 040DE14136 / R-SUZ-001H -
KE249M79 79,00 1,00 30,00 -1,5 0,50- 12,0:1 20 7900XX 277 M,R H3163SPA030S 040DE14136 / R-SUZ-001H -
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
352927C 81,00 3,00 30,00 -4,7 0,50- 12,0:1 20 JG1001-3189 274 M,R H3163SPA030S 040DE14136 -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B8440H(HX/0,025/0,25) 5M8443H(HX/0,025/0,25) - 271-4301 171-6001 271-5201
KING CR4594XP MB5727XP -
Toyota
2E-TE as in Starlet
OEM Engine details 1,3 Ltr 12V Engine code:2E-TE • Displacement:1295 cc • Valves:12 • Comp. Ratio:9,0:1 • Head cc’s:N/A • Gasket thickness:1,40 • Rod Length:N/A
Bore:73,00 • Stroke:77,40 • Block Ht:N/A TOYOTA
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
319866C 73,00 Std. 30,05 -9 - 9,0:1 18 JG1001-2874 202 M - - -
319866C-73,5 73,50 0,50 30,05 -9 - 9,0:1 18 JG1001-2894 207 M - - -
319866C-74 74,00 1,00 30,05 -9 - 9,0:1 18 XC7400 211 M - - -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - - - -
KING - - -
4E-FTE as in Starlet GT
OEM Engine details 1,3 Ltr 16V Engine code:4E-FTE • Displacement:1332 cc • Valves:16 • Comp. Ratio:8,2:1 • Head cc’s:39,00 • Gasket thickness:1,20 • Rod Length:118,00
Bore:74,00 • Stroke:77,40 • Block Ht:187,00
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
K687M745AP 74,50 0,50 29,90 -2,5 FT 0,40- 8,1:1 18 2933XC - 1,M C4602-040 TO-4EFTE-T-64646S-04 -
K687M75AP 75,00 1,00 29,90 -2,5 FT 0,40- 8,1:1 18 2953XC - 1,M C4602-040 TO-4EFTE-T-64646S-04 -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B8390(0,25/0,50/0,75/1,00) 5M8392(0,25/0,50/0,75/1,00) 2T8392 203-3801 (Head Bolts) - -
KING - - -
5E-FE as in Corrolla
OEM Engine details 1,5 Ltr 16V Engine code:5E-FE • Displacement:1497 cc • Valves:16 • Comp. Ratio:9,4:1 • Head cc’s:39,00 • Gasket thickness:1,02 • Rod Length:130,50
Bore:74,00 • Stroke:87,00 • Block Ht:204,00
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
K687M745AP 74,50 0,50 29,90 -2,5 FT 0,10- 9,2:1 18 2933XC - 1,M C4602-040 R-TOY-002H / R-TOY-002-I -
K687M75AP 75,00 1,00 29,90 -2,5 FT 0,10- 9,2:1 18 2953XC - 1,M C4602-040 R-TOY-002H / R-TOY-002-I -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - 203-3801 (Head Bolts) - -
KING - - -
184 **When exceeding 2 BAR boost and/or 500HP(4 Cylinder), please inquire for needed/available pin upgrades!! For 200+HP per cilinder custom part is adviced!!** Custom Capabilities: see page 24 - Foot Notes: see page 226 for description - Instructions & Terminology: see pages 356 185
