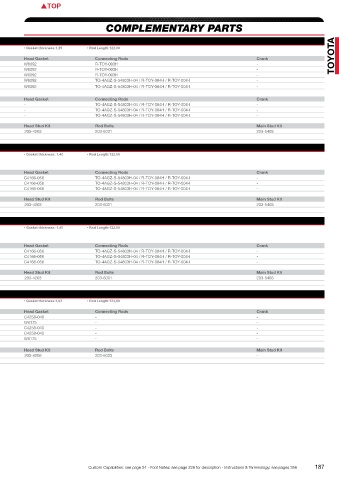

Toyota PISTONS COMPLEMENTARY PARTS

4AG, 4A-GE as in Celica/MR2
OEM Engine details 1,6 Ltr 16V Engine code:4AG/4AGE • Displacement:1587 cc • Valves:16 • Comp. Ratio:10,0:1 • Head cc’s:35,00-39,00 • Gasket thickness:1,25 • Rod Length:122,00
Bore:81,00 • Stroke:77,00 • Block Ht:192,00 TOYOTA
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
K533M815 81,50 0,50 30,68 5,9 0,76- 10,2-11,1:1 18* 8150XX 290 1,K W6092 R-TOY-003H -
K533M82 82,00 1,00 30,68 5,9 0,76- 10,2-11,1:1 18* 8200XX 296 1,K,M W6092 R-TOY-003H -
K505M815 81,50 0,50 30,68 5,9 0,76- 10,2-11,1:1 19* 8150XX 289 1,K,M W6092 R-TOY-003H -
K506M815 81,50 0,50 30,68 5,9 0,76- 10,2-11,1:1 20* 8150XX 287 1,K,R W6092 TO-4AGZ-S-54803H-04 / R-TOY-004H / R-TOY-004-I -
K506M82 82,00 1,00 30,68 5,9 0,76- 10,2-11,1:1 20* 8200XX 294 K,R W6092 TO-4AGZ-S-54803H-04 / R-TOY-004H / R-TOY-004-I -
C/R with 1,22 mm head gasket
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
361470 81,00 Std. 30,50 3,2 0,76- 11.0:1 20* JG1004-3189 - F,M,PS - TO-4AGZ-S-54803H-04 / R-TOY-004H / R-TOY-004-I -
361471 81,50 0,50 30,50 2,7 0,76- 11.0:1 20* JG1004-3209 251 F,M,PS - TO-4AGZ-S-54803H-04 / R-TOY-004H / R-TOY-004-I -
361472 82,00 1,00 30,50 2,3 0,76- 11.0:1 20* JG1004-3228 - F,M,PS - TO-4AGZ-S-54803H-04 / R-TOY-004H / R-TOY-004-I -
* Check pin size before ordering!
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B1780H(HX/0,025/0,25/0,50) 5M1695H(HX/0,025/0,25/0,50) 2T1695 203-4203 203-6001 203-5403
KING CR4032XP MB5527XP TW 231AM

4A-GE 20V Silver Top
OEM Engine details 1,6 Ltr 20V Engine code:4A-GE • Displacement:1587 cc • Valves:20 • Comp. Ratio:10,5:1 • Head cc’s:35,00 • Gasket thickness: 1.40 • Rod Length:122,00
Bore:81,00 • Stroke:77,00 • Block Ht:192,00
C/R with 1,22 mm head gasket
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
361473 81,00 Std. 30,50 6,8 0,76- 12.0:1 20* JG1004-3189 - F,M,PS C4166-056 TO-4AGZ-S-54803H-04 / R-TOY-004H / R-TOY-004-I -
361474 81,50 0,50 30,50 6,5 0,76- 12.0:1 20* JG1004-3209 - F,M,PS C4166-056 TO-4AGZ-S-54803H-04 / R-TOY-004H / R-TOY-004-I -
361475 82,00 1,00 30,50 6,1 0,76- 12.0:1 20* JG1004-3228 - F,M,PS C4166-056 TO-4AGZ-S-54803H-04 / R-TOY-004H / R-TOY-004-I -
* Check pin size before ordering!
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B1780H(HX/0,025/0,25/0,50) 5M1695H(HX/0,025/0,25/0,50) 2T1695 203-4203 203-6001 203-5403
KING CR4032XP MB5527XP TW 231AM
4A-GE 20V Black Top
OEM Engine details 1,6 Ltr 20V Engine code:4A-GE • Displacement:1587 cc • Valves:20 • Comp. Ratio:11,0:1 • Head cc’s:37,80 • Gasket thickness: 1.40 • Rod Length:122,00
Bore:81,00 • Stroke:77,00 • Block Ht:192,00
C/R with 1,22 mm head gasket
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
361473 81,00 Std. 30,50 6,8 0,76- 11.5:1 20* JG1004-3189 - F,M,PS C4166-056 TO-4AGZ-S-54803H-04 / R-TOY-004H / R-TOY-004-I -
361474 81,50 0,50 30,50 6,5 0,76- 11.5:1 20* JG1004-3209 - F,M,PS C4166-056 TO-4AGZ-S-54803H-04 / R-TOY-004H / R-TOY-004-I -
361475 82,00 1,00 30,50 6,1 0,76- 11.5:1 20* JG1004-3228 - F,M,PS C4166-056 TO-4AGZ-S-54803H-04 / R-TOY-004H / R-TOY-004-I -
* Check pin size before ordering!
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B1780H(HX/0,025/0,25/0,50) 5M1695H(HX/0,025/0,25/0,50) 2T1695 203-4203 203-6001 203-5403
KING CR4032XP MB5527XP TW 231AM
3TC as in Corolla + also fits 2TC (1.6L)
OEM Engine details 1,8 Ltr 8V Engine code:3TC • Displacement:1770 cc • Valves:8 • Comp. Ratio:9,0:1 • Head cc’s:63,00 • Gasket thickness:1,02 • Rod Length:123,00
Bore:85,00 • Stroke:78,00 • Block Ht:197,00
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
K547M87 87,00 2,00 34,92 -2 FT 0,15- 7,5:1 22 8700XX 344 1,M C4258-040 - -
K547M89 89,00 4,00 34,92 -2 FT 0,15- 7,5:1 22 8900XX 377 1,M W6175 - -
K508M86 86,00 1,00 34,92 20,6 0,15- 10,2-10,9:1 22 8600XX 392 1,M C4258-040 - -
K508M87 87,00 2,00 34,92 20,6 0,15- 10,2-10,9:1 22 8700XX 400 1 C4258-040 - -
K508M89 89,00 4,00 34,92 20,6 0,15- 10,2-10,9:1 22 8900XX 406 1 W6175 - -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - 203-4206 203-6003 -
KING - - -

186 **When exceeding 2 BAR boost and/or 500HP(4 Cylinder), please inquire for needed/available pin upgrades!! For 200+HP per cilinder custom part is adviced!!** Custom Capabilities: see page 24 - Foot Notes: see page 226 for description - Instructions & Terminology: see pages 356 187
