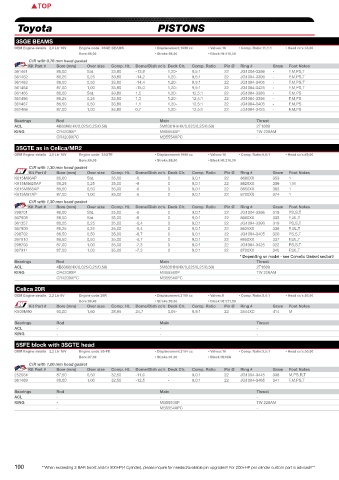

Page 189 - EA20_LR

TOP TOP

Toyota PISTONS COMPLEMENTARY PARTS

3SGE BEAMS
OEM Engine details 2,0 Ltr 16V Engine code: 3SGE BEAMS • Displacement:1998 cc • Valves:16 • Comp. Ratio:11,1:1 • Head cc’s:33,00 • Gasket thickness:0,80 • Rod Length:138,00
Bore:86,00 • Stroke:86,00 • Block Ht:216,00 TOYOTA
C/R with 0,76 mm head gasket
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
361461 86,00 Std. 33,80 -13,8 1,20- 9,5:1 22 JG1004-3386 - F,M,PS,T - TO-3SG-S-65433H-04 / R-TOY-005H / R-TOY-005-I -
361462 86,25 0,25 33,80 -14,2 1,20- 9,5:1 22 JG1004-3396 - F,M,PS,T - TO-3SG-S-65433H-04 / R-TOY-005H / R-TOY-005-I -
361463 86,50 0,50 33,80 -14,4 1,20- 9,5:1 22 JG1004-3405 - F,M,PS,T - TO-3SG-S-65433H-04 / R-TOY-005H / R-TOY-005-I -
361464 87,00 1,00 33,80 -15,0 1,20- 9,5:1 22 JG1004-3425 - F,M,PS,T - TO-3SG-S-65433H-04 / R-TOY-005H / R-TOY-005-I -
361465 86,00 Std. 33,80 1,5 1,20- 12,5:1 22 JG1004-3386 - F,M,PS - TO-3SG-S-65433H-04 / R-TOY-005H / R-TOY-005-I -
361466 86,25 0,25 33,80 1,3 1,20- 12,5:1 22 JG1004-3396 - F,M,PS - TO-3SG-S-65433H-04 / R-TOY-005H / R-TOY-005-I -
361467 86,50 0,50 33,80 1,1 1,20- 12,5:1 22 JG1004-3405 - F,M,PS - TO-3SG-S-65433H-04 / R-TOY-005H / R-TOY-005-I -
361468 87,00 1,00 33,80 0,7 1,20- 12,5:1 22 JG1004-3425 - F,M,PS - TO-3SG-S-65433H-04 / R-TOY-005H / R-TOY-005-I -

Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B8366(HX/0,025/0,25/0,50) 5M8361H(HX/0,025/0,25/0,50) 2T1689 203-4204 203-6002 203-5404
KING CR4209XP MB5554XP TW 226AM
CR4209XPC MB5554XPC -
3SGTE as in Celica/MR2
OEM Engine details 2,0 Ltr 16V Engine code: 3SGTE • Displacement:1998 cc • Valves:16 • Comp. Ratio:8,8:1 • Head cc’s:49,00 • Gasket thickness:1,42 • Rod Length:138,00
Bore:86,00 • Stroke:86,00 • Block Ht:216,00
C/R with 1,30 mm head gasket
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
K615M86AP 86,00 Std. 35,00 -6 0 9,0:1 22 8600XX 353 1 W6328/C4606-051* TO-3SG-S-65433H-04/ R-TOY-005-I / R-TOY-EN24-005 -
K615M8625AP 86,25 0,25 35,00 -6 0 9,0:1 22 8625XX 356 1,M W6328/C4606-051* TO-3SG-S-65433H-04/ R-TOY-005-I / R-TOY-EN24-005 -
K615M865AP 86,50 0,50 35,00 -6 0 9,0:1 22 8650XX 363 1 W6328/C4606-051* TO-3SG-S-65433H-04/ R-TOY-005-I / R-TOY-EN24-005 -
K615M87AP 87,00 1,00 35,00 -6 0 9,0:1 22 8700XX 374 1 W6328/C4606-051* TO-3SG-S-65433H-04/ R-TOY-005-I / R-TOY-EN24-005 -
C/R with 1,30 mm head gasket
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
298701 86,00 Std. 35,00 -6 0 9,0:1 22 JG1004-3386 318 PS,S,T TY1000-047/C4606-051* TO-3SG-S-65433H-04/ R-TOY-005-I / R-TOY-EN24-005 -
367908 86,00 Std. 35,00 -6 0 9,0:1 22 8600XX 335 F,UL,T TY1000-039/C4606-040* TO-3SG-S-65433H-04/ R-TOY-005-I / R-TOY-EN24-005
361357 86,25 0,25 35,00 -6,4 0 9,0:1 22 JG1004-3396 319 PS,S,T TY1000-047/C4606-051* TO-3SG-S-65433H-04/ R-TOY-005-I / R-TOY-EN24-005 -
367909 86,25 0,25 35,00 -6,4 0 9,0:1 22 8625XX 336 F,UL,T TY1000-039/C4606-040* TO-3SG-S-65433H-04/ R-TOY-005-I / R-TOY-EN24-005
298702 86,50 0,50 35,00 -6,7 0 9,0:1 22 JG1004-3405 320 PS,S,T TY1000-047/C4606-051* TO-3SG-S-65433H-04/ R-TOY-005-I / R-TOY-EN24-005 -
367910 86,50 0,50 35,00 -6,7 0 9,0:1 22 8650XX 337 F,UL,T TY1000-039/C4606-040* TO-3SG-S-65433H-04/ R-TOY-005-I / R-TOY-EN24-005
298703 87,00 1,00 35,00 -7,3 0 9,0:1 22 JG1004-3425 322 PS,S,T TY1000-047/C4606-051* TO-3SG-S-65433H-04/ R-TOY-005-I / R-TOY-EN24-005 -
367911 87,00 1,00 35,00 -7,3 0 9,0:1 22 8700XX 340 F,UL,T TY1000-039/C4606-040* TO-3SG-S-65433H-04/ R-TOY-005-I / R-TOY-EN24-005
* Depending on model - see Cometic Gasket section!
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B8366(HX/0,025/0,25/0,50) 5M8361H(HX/0,025/0,25/0,50) 2T1689 203-4204 203-6002 203-5404
KING CR4209XP MB5554XP TW 226AM
CR4209XPC MB5554XPC -
Celica 20R
OEM Engine details 2,2 Ltr 8V Engine code:20R • Displacement:2189 cc • Valves:8 • Comp. Ratio:8,4:1 • Head cc’s:80,00 • Gasket thickness:1,30 • Rod Length:148,00
Bore:88,40 • Stroke:89,00 • Block Ht:231,50
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
K509M90 90,00 1,60 38,95 24,7 0,05- 9,9:1 22 3544XC 414 M C4268-040 - -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - 203-4201 - 203-5406
KING - - -
5SFE block with 3SGTE head
OEM Engine details 2,2 Ltr 16V Engine code:5S-FE • Displacement:2164 cc • Valves:16 • Comp. Ratio:9,5:1 • Head cc’s:50,00 • Gasket thickness:N/A • Rod Length:138,00
Bore:87,00 • Stroke:91,00 • Block Ht:N/A
C/R with 1,00 mm head gasket
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
252064 87,50 0,50 32,50 -11,6 - 9,0:1 22 JG1004-3445 338 M,PS,R,T W6329 TO-3SG-S-65433S-04/ R-TOY-005-I / R-TOY-EN24-005 -
361469 88,00 1,00 32,50 -12,5 - 9,0:1 22 JG1004-3465 341 F,M,PS,T W6329 TO-3SG-S-65433S-04/ R-TOY-005-I / R-TOY-EN24-005 -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - - - -
KING - MB5554XP TW 226AM
- MB5554XPC -

190 **When exceeding 2 BAR boost and/or 500HP(4 Cylinder), please inquire for needed/available pin upgrades!! For 200+HP per cilinder custom part is adviced!!** Custom Capabilities: see page 24 - Foot Notes: see page 226 for description - Instructions & Terminology: see pages 356 191
