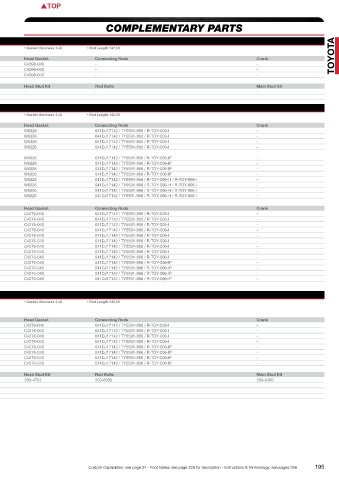

Page 194 - EA20_LR

TOP TOP

Toyota PISTONS COMPLEMENTARY PARTS

3RZFE
OEM Engine details 2,7 Ltr 16V Engine code:3RZ-FE • Displacement:2693 cc • Valves:16 • Comp. Ratio:9,5:1 • Head cc’s:58,00 • Gasket thickness:1,42 • Rod Length:147,00
Bore:95,00 • Stroke:95,00 • Block Ht:232,50 TOYOTA
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
K642M95 95,00 Std. 35,50 -10 2,50- 8,25:1 24 9500XX 408 1,M C4598-040 - -
K642M955 95,50 0,50 35,50 -10 2,50- 8,25:1 24 9550XX 416 1,M C4598-040 - -
K642M96 96,00 1,00 35,50 -10 2,50- 8,25:1 24 9600XX 424 1,M C4598-040 - -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B8376H(HX/0,025/0,25) 5M8378H(HX/0,025/0,25) 2T8377 - - -
KING CR4219XP MB5089XP TW 285AM
2JZGTE as in Supra
OEM Engine details 3,0 Ltr 24V Engine code:2JZGTE • Displacement:2997 cc • Valves:24 • Comp. Ratio:8,5:1 • Head cc’s:45,00 • Gasket thickness:1,42 • Rod Length:142,00
Bore:86,00 • Stroke:86,00 • Block Ht:219,00
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
K550M86AP 86,00 Std. 34,00 -14,8 0 8,3:1 22 8600XX 331 1,R W6326 041DJ17142 / TY5591-866 / R-TOY-006-I -
K550M8625AP 86,25 0,25 34,00 -14,8 0 8,3:1 22 8625XX 332 1,M,R W6326 041DJ17142 / TY5591-866 / R-TOY-006-I -
K550M865AP 86,50 0,50 34,00 -14,8 0 8,4:1 22 8650XX 334 1,R W6326 041DJ17142 / TY5591-866 / R-TOY-006-I -
K550M87AP 87,00 1,00 34,00 -14,8 0 8,5:1 22 8700XX 340 1,R W6326 041DJ17142 / TY5591-866 / R-TOY-006-I -
With 1mm deeper VP’s,HD2 forging with 5,72mm wall tool steel pins
K677M86AP 86,00 Std. 34,00 -5,3 0 9,5:1 22 8600XX - 1,M,S W6326 041DJ17142 / TY5591-866 / R-TOY-006-IP -
K677M8625AP 86,25 0,25 34,00 -5,3 0 9,5:1 22 8625XX - 1,M,S W6326 041DJ17142 / TY5591-866 / R-TOY-006-IP -
K677M865AP 86,50 0,50 34,00 -5,3 0 9,6:1 22 8650XX - 1,M,S W6326 041DJ17142 / TY5591-866 / R-TOY-006-IP -
K677M87AP 87,00 1,00 34,00 -5,3 0 9,7:1 22 8700XX - 1,S W6326 041DJ17142 / TY5591-866 / R-TOY-006-IP -
K678M86AP 86,00 Std. 34,00 0,8 0 10,5:1 22 8600XX - 1,M,S W6326 041DJ17142 / TY5591-866 / R-TOY-006-H / R-TOY-006-I -
K678M8625AP 86,25 0,25 34,00 0,8 0 10,5:1 22 8625XX - 1,M,S W6326 041DJ17142 / TY5591-866 / R-TOY-006-H / R-TOY-006-I -
K678M865AP 86,50 0,50 34,00 0,8 0 10,6:1 22 8650XX - 1,M,S W6326 041DJ17142 / TY5591-866 / R-TOY-006-H / R-TOY-006-I -
K678M87AP 87,00 1,00 34,00 0,8 0 10,7:1 22 8700XX - 1,M,S W6326 041DJ17142 / TY5591-866 / R-TOY-006-H / R-TOY-006-I -
C/R with 1,00 mm head gasket
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
252059 86,50 0,50 34,00 -20,8 0 8,0:1 22 JG1006-3405 330 PS,R,T C4276-040 041DJ17142 / TY5591-866 / R-TOY-006-I -
314301 86,00 Std. 34,00 -15,5 0 8,5:1 22 JG1006-3386 312 PS,S,T C4276-040 041DJ17142 / TY5591-866 / R-TOY-006-I -
361333 86,25 0,25 34,00 -15,9 0 8,5:1 22 JG1006-3396 - PS,S,T C4276-040 041DJ17142 / TY5591-866 / R-TOY-006-I -
296932 86,50 0,50 34,00 -16,4 0 8,5:1 22 JG1006-3405 304 PS,S,T C4276-040 041DJ17142 / TY5591-866 / R-TOY-006-I -
296933 87,00 1,00 34,00 -17,1 0 8,5:1 22 JG1006-3425 306 PS,S,T C4276-040 041DJ17142 / TY5591-866 / R-TOY-006-I -
361341 86,00 Std. 34,00 -9,8 0 9.0:1 22 JG1006-3386 - PS,F.UL C4276-040 041DJ17142 / TY5591-866 / R-TOY-006-I -
361342 86,25 0,25 34,00 -10,1 0 9.0:1 22 JG1006-3396 - PS,F.UL C4276-040 041DJ17142 / TY5591-866 / R-TOY-006-I -
361343 86,50 0,50 34,00 -10,4 0 9.0:1 22 JG1006-3405 - PS,F.UL C4276-040 041DJ17142 / TY5591-866 / R-TOY-006-I -
361344 87,00 1,00 34,00 -11 0 9.0:1 22 JG1006-3425 - PS,F.UL C4276-040 041DJ17142 / TY5591-866 / R-TOY-006-I -
314302 86,00 Std. 34,00 -7,7 0 9,5:1 22 JG1006-3386 330 PS,S,T C4276-040 041DJ17142 / TY5591-866 / R-TOY-006-IP -
361334 86,25 0,25 34,00 -8,0 0 9,5:1 22 JG1006-3396 - PS,S,T C4276-040 041DJ17142 / TY5591-866 / R-TOY-006-IP -
314303 86,50 0,50 34,00 -8,3 0 9,5:1 22 JG1006-3405 334 PS,S,T C4276-040 041DJ17142 / TY5591-866 / R-TOY-006-IP -
314304 87,00 1,00 34,00 -8,9 0 9,5:1 22 JG1006-3425 337 PS,S,T C4276-040 041DJ17142 / TY5591-866 / R-TOY-006-IP -
For 94,00 mm stroker crank
2JZGTE as in Supra
OEM Engine details 3,0 Ltr 24V Engine code:2JZGTE • Displacement:2997 cc • Valves:24 • Comp. Ratio:8,5:1 • Head cc’s:45,00 • Gasket thickness:1,42 • Rod Length:142,00
Bore:86,00 • Stroke:86,00 • Block Ht:219,00
C/R with 1,00 mm head gasket
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
326320 86,00 Std. 30,00 -21,9 0 8,5:1 22 JG1006-3386 290 PS,S,T C4276-040 041DJ17142 / TY5591-866 / R-TOY-006-I -
361335 86,25 0,25 30,00 -22,1 0 8,5:1 22 JG1006-3396 291 M,PS,S,T C4276-040 041DJ17142 / TY5591-866 / R-TOY-006-I -
326321 86,50 0,50 30,00 -22,7 0 8,5:1 22 JG1006-3405 293 PS,S,T C4276-040 041DJ17142 / TY5591-866 / R-TOY-006-I -
326322 87,00 1,00 30,00 -23,4 0 8,5:1 22 JG1006-3425 296 PS,S,T C4276-040 041DJ17142 / TY5591-866 / R-TOY-006-I -
337050 86,00 Std. 30,00 -13,3 0 9,5:1 22 JG1006-3386 - PS,S,T C4276-040 041DJ17142 / TY5591-866 / R-TOY-006-IP -
361336 86,25 0,25 30,00 -13,6 0 9,5:1 22 JG1006-3396 - M,PS,S,T C4276-040 041DJ17142 / TY5591-866 / R-TOY-006-IP -
337051 86,50 0,50 30,00 -14 0 9,5:1 22 JG1006-3405 - PS,S,T C4276-040 041DJ17142 / TY5591-866 / R-TOY-006-IP -
337052 87,00 1,00 30,00 -14,7 0 9,5:1 22 JG1006-3425 - PS,S,T C4276-040 041DJ17142 / TY5591-866 / R-TOY-006-IP -

Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 6B8100H(HX/0,025/0,25) 7M8103H(HX/0,025/0,25) 2T8103 203-4702 203-6005 203-5405
KING CR6754XP MB7084XP TW 284AM
CR6754XPC MB7084XPC
CR6754XPDC

194 **When exceeding 2 BAR boost and/or 500HP(4 Cylinder), please inquire for needed/available pin upgrades!! For 200+HP per cilinder custom part is adviced!!** Custom Capabilities: see page 24 - Foot Notes: see page 226 for description - Instructions & Terminology: see pages 356 195
