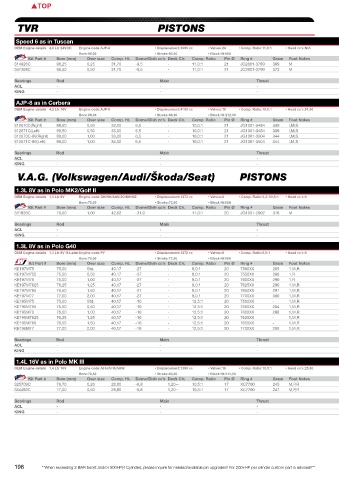

Page 197 - EA20_LR
P. 197
TOP TOP
TVR PISTONS COMPLEMENTARY PARTS
Speed 6 as in Tuscan
OEM Engine details 4,0 Ltr 24V(I6) Engine code:AJP-6 • Displacement:3996 cc • Valves:24 • Comp. Ratio:11,0:1 • Head cc’s:N/A • Gasket thickness:1,48 • Rod Length:143,00 TVR
Bore:96,00 • Stroke:92,00 • Block Ht:N/A
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
314926C 96,25 0,25 31,70 -9,5 - 11,0:1 21 JC2801-3789 369 M C4527-060 TVR_BAJ6_0HS_5630B6H -
347368C 96,50 0,50 31,70 -9,5 - 11,0:1 21 JC2801-3799 373 M C4527-060 TVR_BAJ6_0HS_5630B6H -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - - - -
KING - - -
AJP-8 as in Cerbera
OEM Engine details 4,2 Ltr 16V Engine code:AJP-8 • Displacement:4185 cc • Valves:16 • Comp. Ratio:10,0:1 • Head cc’s:51,00 • Gasket thickness:N/A • Rod Length:136,75
Bore:88,00 • Stroke:86,00 • Block Ht:212,00
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
312670C(Right) 88,50 0,50 33,00 6,5 - 10,0:1 21 JG1001-3484 339 I,M,S H2789SP1043F/H2790SP1043F(R/L) - -
312671C(Left) 88,50 0,50 33,00 6,5 - 10,0:1 21 JG1001-3484 339 I,M,S H2789SP1043F/H2790SP1043F(R/L) - -
312670C-89(Right) 89,00 1,00 33,00 6,5 - 10,0:1 21 JG1001-3504 344 I,M,S H2789SP1043F/H2790SP1043F(R/L) - -
312671C-89(Left) 89,00 1,00 33,00 6,5 - 10,0:1 21 JG1001-3504 344 I,M,S H2789SP1043F/H2790SP1043F(R/L) - -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - - - -
KING - - -
V.A.G. (Volkswagen/Audi/Škoda/Seat) PISTONS
1.3L 8V as in Polo MK2/Golf II
OEM Engine details 1,3 Ltr 8V Engine code:GK/HK/AAV/2G/MH/NZ • Displacement:1272 cc • Valves:8 • Comp. Ratio:9,2:1/9,5:1 • Head cc’s:0 • Gasket thickness:1,75 • Rod Length:N/A .A.G.
Bore:75,00 • Stroke:72,00 • Block Ht:N/A
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank V
331826C 76,00 1,00 42,62 -31,9 - 11,0:1 20 JG1001-2992 316 M - - -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - - - -
KING - - -
1.3L 8V as in Polo G40
OEM Engine details 1,3 Ltr 8V G-Lader Engine code:PY • Displacement:1272 cc • Valves:8 • Comp. Ratio:8,0:1 • Head cc’s:0 • Gasket thickness:1,75 • Rod Length:122,00
Bore:75,00 • Stroke:72,00 • Block Ht:N/A
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
KE197M75 75,00 Std. 40,17 -27 - 8,0:1 20 7500XX 285 1,M,R - 043EE14122 -
KE197M755 75,50 0,50 40,17 -27 - 8,0:1 20 7550XX 288 1,R - 043EE14122 -
KE197M76 76,00 1,00 40,17 -27 - 8,0:1 20 7600XX 290 1,R - 043EE14122 -
KE197M7625 76,25 1,25 40,17 -27 - 8,0:1 20 7625XX 290 1,M,R - 043EE14122 -
KE197M765 76,50 1,50 40,17 -27 - 8,0:1 20 7650XX 291 1,M,R - 043EE14122 -
KE197M77 77,00 2,00 40,17 -27 - 8,0:1 20 7700XX 300 1,M,R - 043EE14122 -
KE195M75 75,00 Std. 40,17 -10 - 12,5:1 20 7500XX - 1,M,R - 043EE14122 -
KE195M755 75,50 0,50 40,17 -10 - 12,5:1 20 7550XX 284 1,M,R - 043EE14122 -
KE195M76 76,00 1,00 40,17 -10 - 12,5:1 20 7600XX 288 1,M,R - 043EE14122 -
KE195M7625 76,25 1,25 40,17 -10 - 12,5:1 20 7625XX - 1,M,R - 043EE14122 -
KE195M765 76,50 1,50 40,17 -10 - 12,5:1 20 7650XX - 1,M,R - 043EE14122 -
KE195M77 77,00 2,00 40,17 -10 - 12,5:1 20 7700XX 299 1,M,R - 043EE14122 -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - 204-4203 - -
KING - - -
1.4L 16V as in Polo MK III
OEM Engine details 1,4 Ltr 16V Engine code:AFH/AFK/AHW • Displacement:1390 cc • Valves:16 • Comp. Ratio:10,5:1 • Head cc’s:25,00 • Gasket thickness:0,50 • Rod Length:144,00
Bore:76,50 • Stroke:80,00 • Block Ht:214,00
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
325709C 76,70 0,20 28,80 -6,8 1,20-- 10,5:1 17 XC7700 245 M,P,R - - -
354482C 77,00 0,50 28,80 -6,8 1,20-- 10,5:1 17 XC7700 247 M,P,R - - -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - - - -
KING - - -
198 **When exceeding 2 BAR boost and/or 500HP(4 Cylinder), please inquire for needed/available pin upgrades!! For 200+HP per cilinder custom part is adviced!!** Custom Capabilities: see page 24 - Foot Notes: see page 226 for description - Instructions & Terminology: see pages 356 199
