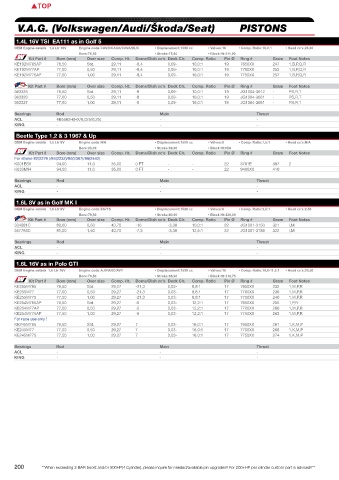

PISTONS
V.A.G. (Volkswagen/Audi/Škoda/Seat) PISTONS COMPLEMENTARY PARTS
1.4L 16V TSI EA111 as in Golf 5
OEM Engine details 1,4 Ltr 16V Engine code:CAVD/CAXA/CAVA/BLG • Displacement:1390 cc • Valves:16 • Comp. Ratio:10,0:1 • Head cc’s:26,00 • Gasket thickness:0,64 • Rod Length:144,00 .A.G.
Bore:76,50 • Stroke:75,60 • Block Ht:211,00
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank V
KE192M765AP 76,50 Std. 29,11 -8,4 0,09- 10,0:1 19 7650XX 247 1,B,P,Q,R C4980-032/338433R R-VW-004-HR -
KE192M77AP 77,00 0,50 29,11 -8,4 0,09- 10,0:1 19 7700XX 253 1,B,P,Q,R C4980-032/338433R R-VW-004-HR -
KE192M775AP 77,50 1,00 29,11 -8,4 0,09- 10,0:1 19 7750XX 257 1,B,P,Q,R 338433R R-VW-004-HR -
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
363325 76,50 Std. 29,11 -8 0,09- 10,0:1 19 JG1004-3012 - PS,R,T C4980-032/338433R R-VW-004-HR -
363326 77,00 0,50 29,11 -8 0,09- 10,0:1 19 JG1004-3031 - PS,R,T C4980-032/338433R R-VW-004-HR -
363327 77,50 1,00 29,11 -8 0,09- 10,0:1 19 JG1004-3051 - PS,R,T 338433R R-VW-004-HR -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B5562H(HX/0,025/0,25) - - - - -
KING - - -
Beetle Type 1,2 & 3 1967 & Up
OEM Engine details 1,5 Ltr 8V Engine code:N/A • Displacement:1500 cc • Valves:8 • Comp. Ratio:7,5:1 • Head cc’s:N/A • Gasket thickness:N/A • Rod Length:N/A
Bore:83,00 • Stroke:69,00 • Block Ht:N/A
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
For stroke 82(2276 )/84(2232)/86(2387)/88(2442)
K001ESV 94,00 11,0 35,00 0 FT - - 22 3701E 397 2 - - -
K633M94 94,00 11,0 35,00 0 FT - - 22 9400XX 410 - -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - - - -
KING - - -
1.6L 8V as in Golf MK I
OEM Engine details 1,6 Ltr 8V Engine code:EG/YS • Displacement:1588 cc • Valves:8 • Comp. Ratio:9,5:1 • Head cc’s:2,50 • Gasket thickness:1,75 • Rod Length:136,00
Bore:79,50 • Stroke:80,00 • Block Ht:220,00
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
334981C 80,00 0,50 40,70 -16 -3,30 10,0:1 22 JG1001-3150 321 I,M - 043DT17136 -
357784C 81,00 1,50 40,70 -7,3 -3,30 12,5:1 22 JG1001-3189 322 I,M - 043DT17136 -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - - 104-6002 -
KING - - -
1.6L 16V as in Polo GTI
OEM Engine details 1,6 Ltr 16V Engine code:AJV/ARC/AVY • Displacement:1598 cc • Valves:16 • Comp. Ratio:10,6-11,5:1 • Head cc’s:26,50 • Gasket thickness:0,64 • Rod Length:138,00
Bore:76,50 • Stroke:86,90 • Block Ht:210,75
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
KE255M765 76,50 Std. 29,27 -21,3 0,03- 8,8:1 17 7650XX 232 1,M,P,R - 043EJ09138 -
KE255M77 77,00 0,50 29,27 -21,3 0,03- 8,8:1 17 7700XX 236 1,M,P,R - 043EJ09138 -
KE255M775 77,50 1,00 29,27 -21,3 0,03- 8,8:1 17 7750XX 240 1,M,P,R - 043EJ09138 -
KE254M765AP 76,50 Std. 29,27 -6 0,03- 12,2:1 17 7650XX 255 1,P,R - 043EJ09138 -
KE254M77AP 77,00 0,50 29,27 -6 0,03- 12,2:1 17 7700XX 260 1,M,P,R - 043EJ09138 -
KE254M775AP 77,50 1,00 29,27 -6 0,03- 12,2:1 17 7750XX 263 1,M,P,R - 043EJ09138 -
For race use only !
KE245M765 76,50 Std. 29,27 7 0,03- 16,0:1 17 7650XX 261 1,K,M,P - 043EJ09138 -
KE245M77 77,00 0,50 29,27 7 0,03- 16,0:1 17 7700XX 268 1,K,M,P - 043EJ09138 -
KE245M775 77,50 1,00 29,27 7 0,03- 16,0:1 17 7750XX 274 1,K,M,P - 043EJ09138 -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - - - -
KING - - -
200 **When exceeding 2 BAR boost and/or 500HP(4 Cylinder), please inquire for needed/available pin upgrades!! For 200+HP per cilinder custom part is adviced!!** Custom Capabilities: see page 24 - Foot Notes: see page 226 for description - Instructions & Terminology: see pages 356 201
