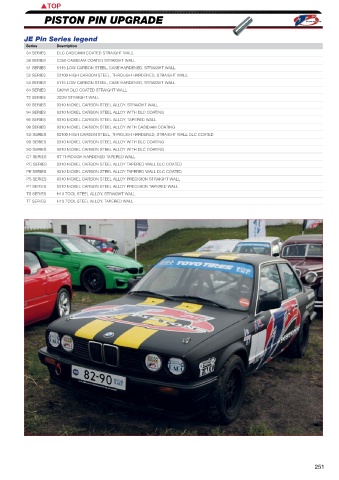

P. 250
TOP TOP
PISTON PIN UPGRADE PISTON PIN UPGRADE
Pins included with Piston Kit Upgrade Pins JE Pin Series legend
Part # Pin Part # Pin OD Pin Length Wall Material Clip # Pin Upgrade Wall Material Series Description
Thickness Part # Thickness 34 SERIES DLC CASIDIAM COATED STRAIGHT WALL
361461 866-2250-18-51C 22,00 57,15 4,57 5115 866-063-MW 866-2250-23-93C 5,84 9310 38 SERIES C350 CASIDIAM COATED STRAIGHT WALL
361462 866-2250-18-51C 22,00 57,15 4,57 5115 866-063-MW 866-2250-23-93C 5,84 9310
361463 866-2250-18-51C 22,00 57,15 4,57 5115 866-063-MW 866-2250-23-93C 5,84 9310 51 SERIES 5115 LOW CARBON STEEL, CASE HARDENED, STRAIGHT WALL
361464 866-2250-15-51C 22,00 57,15 3,81 5115 866-063-MW 866-2250-23-93C 5,84 9310 52 SERIES 52100 HIGH CARBON STEEL, THROUGH HARDENED, STRAIGHT WALL
361465 866-2250-15-51C 22,00 57,15 3,81 5115 866-063-MW 866-2250-23-93C 5,84 9310 55 SERIES 5115 LOW CARBON STEEL, CASE HARDENED, STRAIGHT WALL
361466 866-2250-15-51C 22,00 57,15 3,81 5115 866-063-MW 866-2250-23-93C 5,84 9310 64 SERIES GKHW DLC COATED STRAIGHT WALL
361467 866-2250-15-51C 22,00 57,15 3,81 5115 866-063-MW 866-2250-23-93C 5,84 9310 72 SERIES 300M STRAIGHT WALL
361468 866-2250-15-51C 22,00 57,15 3,81 5115 866-063-MW 866-2250-23-93C 5,84 9310
361469 866-2500-15-51C 22,00 63,50 3,81 5115 866-063-MW 866-2250-23-93C 5,84 9310 93 SERIES 9310 NICKEL CARBON STEEL ALLOY, STRAIGHT WALL
361470 787-2050-14-93C 20,00 52,07 3,55 9310 787-050-MW 787-2050-16-93C 4,06 9310 94 SERIES 9310 NICKEL CARBON STEEL ALLOY WITH DLC COATING
361471 787-2050-14-93C 20,00 52,07 3,55 9310 787-050-MW 787-2050-16-93C 4,06 9310 95 SERIES 9310 NICKEL CARBON STEEL ALLOY, TAPERED WALL
361472 787-2050-14-93C 20,00 52,07 3,55 9310 787-050-MW 787-2050-16-93C 4,06 9310 98 SERIES 9310 NICKEL CARBON STEEL ALLOY WITH CASIDIAM COATING
361473 787-2050-14-93C 20,00 52,07 3,55 9310 787-050-MW 787-2050-16-93C 4,06 9310 5D SERIES 52100 HIGH CARBON STEEL, THROUGH HARDENED, STRAIGHT WALL DLC COATED
361474 787-2050-14-93C 20,00 52,07 3,55 9310 787-050-MW 787-2050-16-93C 4,06 9310
361475 787-2050-14-93C 20,00 52,07 3,55 9310 787-050-MW 787-2050-16-93C 4,06 9310 9B SERIES 9310 NICKEL CARBON STEEL ALLOY WITH DLC COATING
362143 905-2250-21-93C 23,00 57,15 5,33 9310 905-073-MW 905-2250-21-93C 5,33 9310 9D SERIES 9310 NICKEL CARBON STEEL ALLOY WITH DLC COATING
362209 787-2500-14-51C 20,00 63,50 3,55 5115 787-050-MW 787-2500-17-98C 4,32 9310 CT SERIES S7 THROUGH HARDENED TAPERED WALL
362210 787-2500-14-51C 20,00 63,50 3,55 5115 787-050-MW 787-2500-17-98C 4,32 9310 PC SERIES 9310 NICKEL CARBON STEEL ALLOY TAPERED WALL DLC COATED
362211 787-2500-14-51C 20,00 63,50 3,55 5115 787-050-MW 787-2500-17-98C 4,32 9310
362212 787-2500-14-51C 20,00 63,50 3,55 5115 787-050-MW 787-2500-17-98C 4,32 9310 PE SERIES 9310 NICKEL CARBON STEEL ALLOY TAPERED WALL DLC COATED
362213 787-2500-14-51C 20,00 63,50 3,55 5115 787-050-MW 787-2500-17-98C 4,32 9310 PS SERIES 9310 NICKEL CARBON STEEL ALLOY PRECISION STRAIGHT WALL
362214 787-2500-14-51C 20,00 63,50 3,55 5115 787-050-MW 787-2500-17-98C 4,32 9310 PT SERIES 9310 NICKEL CARBON STEEL ALLOY PRECISION TAPERED WALL
362215 669-2250-12-51C 17,00 57,15 3,05 5115 669-050-MW 669-2250-14-TSC 3,55 H13 TS SERIES H13 TOOL STEEL ALLOY, STRAIGHT WALL
362216 669-2250-12-51C 17,00 57,15 3,05 5115 669-050-MW 669-2250-14-TSC 3,55 H13 TT SERIES H13 TOOL STEEL ALLOY, TAPERED WALL
362220 728-2250-12-TSC 18,50 57,15 3,05 H13 728-050-MW 728-2250-18-TSC 4,57 H13
362221 728-2250-12-TSC 18,50 57,15 3,05 H13 728-050-MW 728-2250-18-TSC 4,57 H13
362222 728-2250-12-TSC 18,50 57,15 3,05 H13 728-050-MW 728-2250-18-TSC 4,57 H13
362223 728-2250-12-TSC 18,50 57,15 3,05 H13 728-050-MW 728-2250-18-TSC 4,57 H13
362224 728-2250-12-TSC 18,50 57,15 3,05 H13 728-050-MW 728-2250-18-TSC 4,57 H13
362225 728-2250-12-TSC 18,50 57,15 3,05 H13 728-050-MW 728-2250-18-TSC 4,57 H13
362226 728-2250-12-TSC 18,50 57,15 3,05 H13 728-050-MW 728-2250-18-TSC 4,57 H13
362227 728-2250-12-TSC 18,50 57,15 3,05 H13 728-050-MW 728-2250-18-TSC 4,57 H13
362228 728-2250-12-TSC 18,50 57,15 3,05 H13 728-050-MW 728-2250-18-TSC 4,57 H13
362229 728-2250-12-TSC 18,50 57,15 3,05 H13 728-050-MW 728-2250-18-TSC 4,57 H13
362230 728-2250-12-TSC 18,50 57,15 3,05 H13 728-050-MW 728-2250-18-TSC 4,57 H13
362231 728-2250-12-TSC 18,50 57,15 3,05 H13 728-050-MW 728-2250-18-TSC 4,57 H13
363325 748-2050-16-93C 19,00 52,07 4,06 9310 748-050-MW 787-2050-21-93C 5,33 9310
363326 748-2050-16-93C 19,00 52,07 4,06 9310 748-050-MW 787-2050-21-93C 5,33 9310
363327 748-2050-16-93C 19,00 52,07 4,06 9310 748-050-MW 787-2050-21-93C 5,33 9310
365723 866-2250-15-51C 22,00 57,15 3,81 5115 866-063-MW 866-2250-23-93C 5,84 9310
367841 827-2250-21-93C 21,00 57,15 5,33 9310 827-063-MW not available
367842 827-2250-21-93C 21,00 57,15 5,33 9310 827-063-MW not available
367843 827-2250-21-93C 21,00 57,15 5,33 9310 827-063-MW not available
367844 827-2250-21-93C 21,00 57,15 5,33 9310 827-063-MW not available
367845 827-2250-21-93C 21,00 57,15 5,33 9310 827-063-MW not available
367877 866-2250-23-93C 22,00 57,15 5,84 9310 866-063-MW 866-2250-25-TSC 6,35 H13
367878 866-2250-23-93C 22,00 57,15 5,84 9310 866-063-MW 866-2250-25-TSC 6,35 H13
367879 866-2250-23-93C 22,00 57,15 5,84 9310 866-063-MW 866-2250-25-TSC 6,35 H13
367880 866-2250-23-93C 22,00 57,15 5,84 9310 866-063-MW 866-2250-25-TSC 6,35 H13
367882 866-2250-23-93C 22,00 57,15 5,84 9310 866-063-MW 866-2250-25-TSC 6,35 H13
367884 866-2250-23-93C 22,00 57,15 5,84 9310 866-063-MW 866-2250-25-TSC 6,35 H13
367892 866-2250-23-93C 22,00 57,15 5,84 9310 866-063-MW 866-2250-25-TSC 6,35 H13
367893 866-2250-23-93C 22,00 57,15 5,84 9310 866-063-MW 866-2250-25-TSC 6,35 H13
367894 866-2250-23-93C 22,00 57,15 5,84 9310 866-063-MW 866-2250-25-TSC 6,35 H13
367895 866-2250-23-93C 22,00 57,15 5,84 9310 866-063-MW 866-2250-25-TSC 6,35 H13
367898 866-2250-23-93C 22,00 57,15 5,84 9310 866-063-MW 866-2250-25-TSC 6,35 H13
367899 866-2250-23-93C 22,00 57,15 5,84 9310 866-063-MW 866-2250-25-TSC 6,35 H13
367900 866-2250-23-93C 22,00 57,15 5,84 9310 866-063-MW 866-2250-25-TSC 6,35 H13
367901 866-2250-23-93C 22,00 57,15 5,84 9310 866-063-MW 866-2250-25-TSC 6,35 H13
367908 866-2250-23-93C 22,00 57,15 5,84 9310 866-063-MW 866-2250-25-TSC 6,35 H13
367909 866-2250-23-93C 22,00 57,15 5,84 9310 866-063-MW 866-2250-25-TSC 6,35 H13
367910S 866-2250-23-93C 22,00 57,15 5,84 9310 866-063-MW 866-2250-25-TSC 6,35 H13
