P. 253
TOP TOP

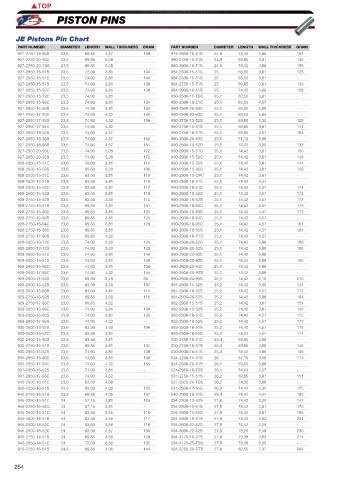

PISTON PINS PISTON PINS
JE Pistons Pin Chart Trend Pin Chart
PART NUMBER DIAMETER LENGTH WALL THICKNESS GRAM PART NUMBER DIAMETER LENGTH WALL THICKNESS GRAM Part # OD Length Wall Thickness Gram Wt. Series Coated Note
(MM) (MM)
927-2750-18-95S 23,5 69,85 4,57 139 975-2930-16-51S 24,8 74,42 4,06 154
927-2750-20-93C 23,5 69,85 5,08 - 980-2750-15-51S 24,9 69,85 3,81 135 CA78751772197CD 20,00 45,00 5,00 82,00 TP-1 SERIES DLC Coated Pin Chamfered
927-2750-20-TSS 23,5 69,85 5,08 - 980-2930-16-51S 24,9 74,42 4,06 156 CA78741772197CD 20,00 45,00 5,56 82,00 TP-1 SERIES DLC Coated Pin Chamfered
927-2850-15-51S 23,5 72,39 3,81 134 984-2500-15-51C 25 63,50 3,81 125 CA78741800180CD 20,00 45,72 4,57 79,00 TP-1 SERIES DLC Coated Pin Chamfered
927-2950-15-51C 23,5 74,93 3,81 140 984-2500-15-51S 25 63,50 3,81 - CA8272125310C 20,00 53,98 7,87 136,00 TP-1 SERIES - Chamfered
927-2950-15-51S 23,5 74,93 3,81 139 984-2750-15-51S 25 69,85 3,81 138 CA8272125310CD 20,00 53,98 7,87 136,00 TP-1 SERIES DLC Coated Pin Chamfered
927-2950-15-52C 23,5 74,93 3,81 136 984-2930-16-51S 25 74,42 4,06 158 G7872250155 20,00 57,15 3,94 88,00 G SERIES - -
927-2950-15-72C 23,5 74,93 3,81 - 990-2500-15-TSC 25,1 63,50 3,81 - G7872250155C 20,00 57,15 3,94 88,00 G SERIES - Chamfered
927-2950-15-93C 23,5 74,93 3,81 134 990-2500-18-51C 25,1 63,50 4,57 - H7872250155 20,00 57,15 3,94 88,00 H SERIES - -
927-2950-15-93S 23,5 74,93 3,81 135 990-2500-20-93C 25,1 63,50 5,08 - H7872250155C 20,00 57,15 3,94 88,00 H SERIES - Chamfered
927-2950-17-93C 23,5 74,93 4,32 148 990-2500-23-93C 25,1 63,50 5,84 - H7872250155CD 20,00 57,15 3,94 88,00 H SERIES DLC Coated Pin Chamfered
927-2950-17-93S 23,5 74,93 4,32 150 990-2750-13-52S 25,1 69,85 3,30 125 CA7872250220 20,00 57,15 5,59 138,00 TP-1 SERIES - -
927-2950-17-94C 23,5 74,93 4,32 - 990-2750-15-51S 25,1 69,85 3,81 141 CA7872250220D 20,00 57,15 5,59 138,00 TP-1 SERIES DLC Coated Pin -
927-2950-18-52S 23,5 74,93 4,57 - 990-2750-18-51S 25,1 69,85 4,57 164 G8272500155 20,00 63,50 3,94 104,00 G SERIES - -
927-2950-18-93S 23,5 74,93 4,57 162 990-2800-20-93C 25,1 71,12 5,08 - G8272500155C 20,00 63,50 3,94 104,00 G SERIES - Chamfered
927-2950-18-95S 23,5 74,93 4,57 151 990-2930-13-52S 25,1 74,42 3,30 133 H8272500155 20,00 63,50 3,94 104,00 H SERIES - -
927-2950-20-93C 23,5 74,93 5,08 172 990-2930-15-51C 25,1 74,42 3,81 150 H8272500155C 20,00 63,50 3,94 104,00 H SERIES - Chamfered
927-2950-20-93S 23,5 74,93 5,08 172 990-2930-15-52C 25,1 74,42 3,81 146 H8272500155CD 20,00 63,50 3,94 104,00 H SERIES DLC Coated Pin Chamfered
928-2350-15-51C 23,6 59,69 3,81 112 990-2930-15-52S 25,1 74,42 3,81 144 H8272500155D 20,00 63,50 3,94 104,00 H SERIES DLC Coated Pin -
928-2500-13-52S 23,6 63,50 3,30 106 990-2930-15-95S 25,1 74,42 3,81 139 CA78752500197CD 20,00 63,50 5,00 116,00 TP-1 SERIES DLC Coated Pin Chamfered
928-2500-15-51C 23,6 63,50 3,81 118 990-2930-15-CPC 25,1 74,42 3,81 - CA8272500310CD 20,00 63,50 7,87 160,00 TP-1 SERIES DLC Coated Pin Chamfered
928-2500-15-51S 23,6 63,50 3,81 118 990-2930-18-51C 25,1 74,42 4,57 - CA8252125325C 20,96 53,98 8,26 138,70 TP-1 SERIES - Chamfered
928-2500-15-52C 23,6 63,50 3,81 117 990-2930-18-51S 25,1 74,42 4,57 174 CA8252125325CD 20,96 53,98 8,26 138,70 TP-1 SERIES DLC Coated Pin Chamfered
928-2500-15-52S 23,6 63,50 3,81 118 990-2930-18-52C 25,1 74,42 4,57 172 CA7081800120CD 21,00 53,98 3,05 50,50 TP-1 SERIES DLC Coated Pin Chamfered
928-2750-13-52S 23,6 63,50 3,30 115 990-2930-18-52S 25,1 74,42 4,57 172 CA7081810120 22,00 53,98 3,05 51,50 TP-1 SERIES - -
928-2750-15-51S 23,6 69,85 3,81 131 990-2930-18-93C 25,1 74,42 4,57 173 CA7081810120C 22,00 53,98 3,05 51,00 TP-1 SERIES - Chamfered
928-2750-15-93C 23,6 69,85 3,81 125 990-2930-18-93S 25,1 74,42 4,57 173 CA7081810120CD 22,00 53,98 3,05 51,00 TP-1 SERIES DLC Coated Pin Chamfered
928-2750-15-93S 23,6 69,85 3,81 125 990-2930-18-94C 25,1 74,42 4,57 - CA8662125270CD 22,00 53,98 6,86 136,00 TP-1 SERIES DLC Coated Pin Chamfered
928-2750-15-94C 23,6 69,85 3,81 129 990-2930-18-95C 25,1 74,42 4,57 161 CA8662125270D 22,00 53,98 6,86 136,00 TP-1 SERIES DLC Coated Pin -
928-2750-15-98C 23,6 69,85 3,81 - 990-2930-18-95S 25,1 74,42 4,57 164 CA8662125275CD 22,00 53,98 6,99 137,80 TP-1 SERIES DLC Coated Pin Chamfered
928-2750-17-93S 23,6 69,85 4,32 - 990-2930-18-PTC 25,1 74,42 4,57 - CA8662250245 22,00 57,15 6,22 137,00 TP-1 SERIES - -
928-2950-13-72C 23,6 74,93 3,30 123 990-2930-20-52C 25,1 74,42 5,08 186 CA8662250250C 22,00 57,15 6,35 139,60 TP-1 SERIES - Chamfered
928-2950-13-72S 23,6 74,93 3,30 123 990-2930-20-52S 25,1 74,42 5,08 186 CA8662250250CD 22,00 57,15 6,35 139,60 TP-1 SERIES DLC Coated Pin Chamfered
928-2950-15-51C 23,6 74,93 3,81 140 990-2930-20-93C 25,1 74,42 5,08 - G8662500155 22,00 63,50 3,94 111,00 G SERIES - -
928-2950-15-51S 23,6 74,93 3,81 140 990-2930-20-93S 25,1 74,42 5,08 190 G8662500155C 22,00 63,50 3,94 111,00 G SERIES - Chamfered
928-2950-15-93C 23,6 74,93 3,81 136 990-2930-20-94C 25,1 74,42 5,08 - H8662500155 22,00 63,50 3,94 111,00 H SERIES - -
928-2950-17-93C 23,6 74,93 4,32 154 990-2930-20-PSS 25,1 74,42 5,08 - H8662500155C 22,00 63,50 3,94 109,00 H SERIES - Chamfered
929-2500-11-52S 23,6 63,50 2,79 95 990-2930-24-93S 25,1 74,42 6,10 215 H8662500155CD 22,00 63,50 3,94 109,00 H SERIES DLC Coated Pin Chamfered
929-2500-13-52S 23,6 63,50 3,30 107 991-2930-15-52S 25,2 74,42 3,30 144 H8662500155D 22,00 63,50 3,94 109,00 H SERIES DLC Coated Pin Chamfered
929-2500-15-93S 23,6 63,50 3,81 114 991-2930-18-52S 25,2 74,42 4,57 172 CA8662500210C 22,00 63,50 5,33 137,00 TP-1 SERIES - Chamfered
929-2750-13-52S 23,6 69,85 3,30 116 991-2930-20-52S 25,2 74,42 5,08 184 CA8662500210 22,00 63,50 5,33 137,40 TP-1 SERIES - -
929-2750-17-93C 23,6 69,85 4,32 - 992-2930-15-51S 25,2 74,42 3,81 151 CA8662500210CD 22,00 63,50 5,33 137,00 TP-1 SERIES DLC Coated Pin Chamfered
929-2950-15-93C 23,6 74,93 3,81 139 992-2930-15-52S 25,2 74,42 3,81 146 CA8662500210D 22,00 63,50 5,33 137,40 TP-1 SERIES DLC Coated Pin -
929-2950-15-93S 23,6 74,93 3,81 135 992-2930-18-51S 25,2 74,42 4,57 175 H8662500220 22,00 63,50 5,59 143,00 H SERIES - -
929-2950-17-93S 23,6 74,93 4,32 - 992-2930-18-52S 25,2 74,42 4,57 173 H8662500220C 22,00 63,50 5,59 143,00 H SERIES - Chamfered
930-2500-13-52S 23,6 63,50 3,30 106 993-2930-18-51S 25,2 74,42 4,57 176 H8662500220CD 22,00 63,50 5,59 143,00 H SERIES DLC Coated Pin Chamfered
930-2500-15-52C 23,6 63,50 3,81 - 993-2930-18-52S 25,2 74,42 4,57 174 H8662500220D 22,00 63,50 5,59 143,00 H SERIES DLC Coated Pin -
930-2500-15-93S 23,6 63,50 3,81 - 000-2750-16-51C 25,4 69,85 4,06 - CA8672125270CD 22,02 53,98 6,86 136,80 TP-1 SERIES DLC Coated Pin Chamfered
930-2750-15-51S 23,6 69,85 3,81 132 000-2750-16-51S 25,4 69,85 4,06 146 CA8672125270D 22,02 53,98 6,86 136,80 TP-1 SERIES DLC Coated Pin -
930-2950-15-52S 23,6 74,93 3,81 139 000-2930-16-51S 25,4 74,42 4,06 156 CA8672250245CD 22,02 57,15 6,22 137,60 TP-1 SERIES DLC Coated Pin Chamfered
930-2950-15-93C 23,6 74,93 3,81 136 024-2250-14-51S 26 57,15 3,56 113 CA8682125270 22,05 53,98 6,86 138,00 TP-1 SERIES - -
930-2950-17-93C 23,6 74,93 4,32 155 024-2500-20-51S 26,1 63,50 5,08 - CA8682125270CD 22,05 53,98 6,86 137,10 TP-1 SERIES DLC Coated Pin Chamfered
931-2950-15-52S 23,6 74,93 3,81 - 024-2950-18-TSS 26,1 74,93 4,57 - CA8682250250CD 22,05 57,15 6,35 139,60 TP-1 SERIES DLC Coated Pin Chamfered
931-2950-17-93C 23,6 74,93 4,32 - 031-2750-15-51S 26,2 69,85 3,81 151 CA78718898155C 22,07 53,98 3,94 74,70 TP-1 SERIES - Chamfered
940-2500-16-51C 23,9 63,50 4,06 - 031-2925-20-TSS 26,2 74,30 5,08 - CA78718898165C 22,07 53,98 4,19 78,20 TP-1 SERIES - Chamfered
940-2500-16-51S 23,9 63,50 4,06 125 031-2930-17-51S 26,2 74,42 4,32 175 CA8692125270CD 22,07 53,98 6,86 137,20 TP-1 SERIES DLC Coated Pin Chamfered
940-2750-16-51S 23,9 69,85 4,06 137 040-2930-18-51S 26,4 74,42 4,57 180 CA8702125270CD 22,10 53,98 6,86 137,30 TP-1 SERIES DLC Coated Pin Chamfered
945-2250-15-51C 24 57,15 3,81 105 094-2930-13-52S 27,8 74,42 3,30 147 CA8712125270CD 22,12 53,98 6,86 137,60 TP-1 SERIES DLC Coated Pin Chamfered
945-2250-15-5DC 24 57,15 3,81 - 094-2930-15-51S 27,8 74,42 3,81 170 G8752500155 22,23 63,50 3,94 112,00 G SERIES - -
945-2500-14-51C 24 63,50 3,56 116 094-2930-15-52S 27,8 74,42 3,81 166 G8752500155C 22,23 63,50 3,94 112,00 G SERIES - Chamfered
945-2500-14-51S 24 63,50 3,56 117 094-2930-19-51S 27,8 74,42 4,83 201 G9052500155 23.00 63,50 3,94 117,00 G SERIES - -
945-2500-14-52C 24 63,50 3,56 116 094-2930-22-52S 27,8 74,42 5,59 - G9062500155 23,01 63,50 3,94 118,00 G SERIES - -
945-2500-18-52C 24 63,50 4,57 138 094-3000-22-52S 27,8 76,20 5,59 230 G9122500155 23,16 63,50 3,94 118,00 G SERIES - -
945-2750-14-51S 24 69,85 3,56 128 094-3125-19-51S 27,8 79,38 4,83 214 H9122750145 23,16 69,85 3,68 122,00 H SERIES - -
945-2850-14-51C 24 72,39 3,56 132 094-3125-25-TSS 27,8 79,38 6,35 - H9122750145C 23,16 69,85 3,68 122,00 H SERIES - Chamfered
975-2750-16-51S 24,8 69,85 4,06 144 094-3250-29-CTS 27,8 82,55 7,37 294 G9122750155 23,16 69,85 3,94 128,00 G SERIES - -
