Page 254 - EA20_LR
P. 254
TOP TOP
PISTON PINS PISTON PINS

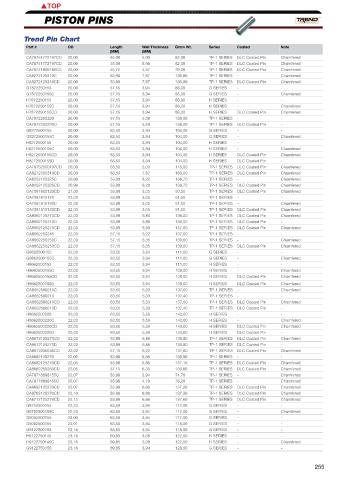

JE Pistons Pin Chart Trend Pin Chart
PART NUMBER DIAMETER LENGTH WALL THICKNESS GRAM PART NUMBER DIAMETER LENGTH WALL THICKNESS GRAM Part # OD Length Wall Thickness Gram Wt. Series Coated Note
(MM) (MM)
927-2750-18-95S 23,5 69,85 4,57 139 975-2930-16-51S 24,8 74,42 4,06 154
927-2750-20-93C 23,5 69,85 5,08 - 980-2750-15-51S 24,9 69,85 3,81 135 CA78751772197CD 20,00 45,00 5,00 82,00 TP-1 SERIES DLC Coated Pin Chamfered
927-2750-20-TSS 23,5 69,85 5,08 - 980-2930-16-51S 24,9 74,42 4,06 156 CA78741772197CD 20,00 45,00 5,56 82,00 TP-1 SERIES DLC Coated Pin Chamfered
927-2850-15-51S 23,5 72,39 3,81 134 984-2500-15-51C 25 63,50 3,81 125 CA78741800180CD 20,00 45,72 4,57 79,00 TP-1 SERIES DLC Coated Pin Chamfered
927-2950-15-51C 23,5 74,93 3,81 140 984-2500-15-51S 25 63,50 3,81 - CA8272125310C 20,00 53,98 7,87 136,00 TP-1 SERIES - Chamfered
927-2950-15-51S 23,5 74,93 3,81 139 984-2750-15-51S 25 69,85 3,81 138 CA8272125310CD 20,00 53,98 7,87 136,00 TP-1 SERIES DLC Coated Pin Chamfered
927-2950-15-52C 23,5 74,93 3,81 136 984-2930-16-51S 25 74,42 4,06 158 G7872250155 20,00 57,15 3,94 88,00 G SERIES - -
927-2950-15-72C 23,5 74,93 3,81 - 990-2500-15-TSC 25,1 63,50 3,81 - G7872250155C 20,00 57,15 3,94 88,00 G SERIES - Chamfered
927-2950-15-93C 23,5 74,93 3,81 134 990-2500-18-51C 25,1 63,50 4,57 - H7872250155 20,00 57,15 3,94 88,00 H SERIES - -
927-2950-15-93S 23,5 74,93 3,81 135 990-2500-20-93C 25,1 63,50 5,08 - H7872250155C 20,00 57,15 3,94 88,00 H SERIES - Chamfered
927-2950-17-93C 23,5 74,93 4,32 148 990-2500-23-93C 25,1 63,50 5,84 - H7872250155CD 20,00 57,15 3,94 88,00 H SERIES DLC Coated Pin Chamfered
927-2950-17-93S 23,5 74,93 4,32 150 990-2750-13-52S 25,1 69,85 3,30 125 CA7872250220 20,00 57,15 5,59 138,00 TP-1 SERIES - -
927-2950-17-94C 23,5 74,93 4,32 - 990-2750-15-51S 25,1 69,85 3,81 141 CA7872250220D 20,00 57,15 5,59 138,00 TP-1 SERIES DLC Coated Pin -
927-2950-18-52S 23,5 74,93 4,57 - 990-2750-18-51S 25,1 69,85 4,57 164 G8272500155 20,00 63,50 3,94 104,00 G SERIES - -
927-2950-18-93S 23,5 74,93 4,57 162 990-2800-20-93C 25,1 71,12 5,08 - G8272500155C 20,00 63,50 3,94 104,00 G SERIES - Chamfered
927-2950-18-95S 23,5 74,93 4,57 151 990-2930-13-52S 25,1 74,42 3,30 133 H8272500155 20,00 63,50 3,94 104,00 H SERIES - -
927-2950-20-93C 23,5 74,93 5,08 172 990-2930-15-51C 25,1 74,42 3,81 150 H8272500155C 20,00 63,50 3,94 104,00 H SERIES - Chamfered
927-2950-20-93S 23,5 74,93 5,08 172 990-2930-15-52C 25,1 74,42 3,81 146 H8272500155CD 20,00 63,50 3,94 104,00 H SERIES DLC Coated Pin Chamfered
928-2350-15-51C 23,6 59,69 3,81 112 990-2930-15-52S 25,1 74,42 3,81 144 H8272500155D 20,00 63,50 3,94 104,00 H SERIES DLC Coated Pin -
928-2500-13-52S 23,6 63,50 3,30 106 990-2930-15-95S 25,1 74,42 3,81 139 CA78752500197CD 20,00 63,50 5,00 116,00 TP-1 SERIES DLC Coated Pin Chamfered
928-2500-15-51C 23,6 63,50 3,81 118 990-2930-15-CPC 25,1 74,42 3,81 - CA8272500310CD 20,00 63,50 7,87 160,00 TP-1 SERIES DLC Coated Pin Chamfered
928-2500-15-51S 23,6 63,50 3,81 118 990-2930-18-51C 25,1 74,42 4,57 - CA8252125325C 20,96 53,98 8,26 138,70 TP-1 SERIES - Chamfered
928-2500-15-52C 23,6 63,50 3,81 117 990-2930-18-51S 25,1 74,42 4,57 174 CA8252125325CD 20,96 53,98 8,26 138,70 TP-1 SERIES DLC Coated Pin Chamfered
928-2500-15-52S 23,6 63,50 3,81 118 990-2930-18-52C 25,1 74,42 4,57 172 CA7081800120CD 21,00 53,98 3,05 50,50 TP-1 SERIES DLC Coated Pin Chamfered
928-2750-13-52S 23,6 63,50 3,30 115 990-2930-18-52S 25,1 74,42 4,57 172 CA7081810120 22,00 53,98 3,05 51,50 TP-1 SERIES - -
928-2750-15-51S 23,6 69,85 3,81 131 990-2930-18-93C 25,1 74,42 4,57 173 CA7081810120C 22,00 53,98 3,05 51,00 TP-1 SERIES - Chamfered
928-2750-15-93C 23,6 69,85 3,81 125 990-2930-18-93S 25,1 74,42 4,57 173 CA7081810120CD 22,00 53,98 3,05 51,00 TP-1 SERIES DLC Coated Pin Chamfered
928-2750-15-93S 23,6 69,85 3,81 125 990-2930-18-94C 25,1 74,42 4,57 - CA8662125270CD 22,00 53,98 6,86 136,00 TP-1 SERIES DLC Coated Pin Chamfered
928-2750-15-94C 23,6 69,85 3,81 129 990-2930-18-95C 25,1 74,42 4,57 161 CA8662125270D 22,00 53,98 6,86 136,00 TP-1 SERIES DLC Coated Pin -
928-2750-15-98C 23,6 69,85 3,81 - 990-2930-18-95S 25,1 74,42 4,57 164 CA8662125275CD 22,00 53,98 6,99 137,80 TP-1 SERIES DLC Coated Pin Chamfered
928-2750-17-93S 23,6 69,85 4,32 - 990-2930-18-PTC 25,1 74,42 4,57 - CA8662250245 22,00 57,15 6,22 137,00 TP-1 SERIES - -
928-2950-13-72C 23,6 74,93 3,30 123 990-2930-20-52C 25,1 74,42 5,08 186 CA8662250250C 22,00 57,15 6,35 139,60 TP-1 SERIES - Chamfered
928-2950-13-72S 23,6 74,93 3,30 123 990-2930-20-52S 25,1 74,42 5,08 186 CA8662250250CD 22,00 57,15 6,35 139,60 TP-1 SERIES DLC Coated Pin Chamfered
928-2950-15-51C 23,6 74,93 3,81 140 990-2930-20-93C 25,1 74,42 5,08 - G8662500155 22,00 63,50 3,94 111,00 G SERIES - -
928-2950-15-51S 23,6 74,93 3,81 140 990-2930-20-93S 25,1 74,42 5,08 190 G8662500155C 22,00 63,50 3,94 111,00 G SERIES - Chamfered
928-2950-15-93C 23,6 74,93 3,81 136 990-2930-20-94C 25,1 74,42 5,08 - H8662500155 22,00 63,50 3,94 111,00 H SERIES - -
928-2950-17-93C 23,6 74,93 4,32 154 990-2930-20-PSS 25,1 74,42 5,08 - H8662500155C 22,00 63,50 3,94 109,00 H SERIES - Chamfered
929-2500-11-52S 23,6 63,50 2,79 95 990-2930-24-93S 25,1 74,42 6,10 215 H8662500155CD 22,00 63,50 3,94 109,00 H SERIES DLC Coated Pin Chamfered
929-2500-13-52S 23,6 63,50 3,30 107 991-2930-15-52S 25,2 74,42 3,30 144 H8662500155D 22,00 63,50 3,94 109,00 H SERIES DLC Coated Pin Chamfered
929-2500-15-93S 23,6 63,50 3,81 114 991-2930-18-52S 25,2 74,42 4,57 172 CA8662500210C 22,00 63,50 5,33 137,00 TP-1 SERIES - Chamfered
929-2750-13-52S 23,6 69,85 3,30 116 991-2930-20-52S 25,2 74,42 5,08 184 CA8662500210 22,00 63,50 5,33 137,40 TP-1 SERIES - -
929-2750-17-93C 23,6 69,85 4,32 - 992-2930-15-51S 25,2 74,42 3,81 151 CA8662500210CD 22,00 63,50 5,33 137,00 TP-1 SERIES DLC Coated Pin Chamfered
929-2950-15-93C 23,6 74,93 3,81 139 992-2930-15-52S 25,2 74,42 3,81 146 CA8662500210D 22,00 63,50 5,33 137,40 TP-1 SERIES DLC Coated Pin -
929-2950-15-93S 23,6 74,93 3,81 135 992-2930-18-51S 25,2 74,42 4,57 175 H8662500220 22,00 63,50 5,59 143,00 H SERIES - -
929-2950-17-93S 23,6 74,93 4,32 - 992-2930-18-52S 25,2 74,42 4,57 173 H8662500220C 22,00 63,50 5,59 143,00 H SERIES - Chamfered
930-2500-13-52S 23,6 63,50 3,30 106 993-2930-18-51S 25,2 74,42 4,57 176 H8662500220CD 22,00 63,50 5,59 143,00 H SERIES DLC Coated Pin Chamfered
930-2500-15-52C 23,6 63,50 3,81 - 993-2930-18-52S 25,2 74,42 4,57 174 H8662500220D 22,00 63,50 5,59 143,00 H SERIES DLC Coated Pin -
930-2500-15-93S 23,6 63,50 3,81 - 000-2750-16-51C 25,4 69,85 4,06 - CA8672125270CD 22,02 53,98 6,86 136,80 TP-1 SERIES DLC Coated Pin Chamfered
930-2750-15-51S 23,6 69,85 3,81 132 000-2750-16-51S 25,4 69,85 4,06 146 CA8672125270D 22,02 53,98 6,86 136,80 TP-1 SERIES DLC Coated Pin -
930-2950-15-52S 23,6 74,93 3,81 139 000-2930-16-51S 25,4 74,42 4,06 156 CA8672250245CD 22,02 57,15 6,22 137,60 TP-1 SERIES DLC Coated Pin Chamfered
930-2950-15-93C 23,6 74,93 3,81 136 024-2250-14-51S 26 57,15 3,56 113 CA8682125270 22,05 53,98 6,86 138,00 TP-1 SERIES - -
930-2950-17-93C 23,6 74,93 4,32 155 024-2500-20-51S 26,1 63,50 5,08 - CA8682125270CD 22,05 53,98 6,86 137,10 TP-1 SERIES DLC Coated Pin Chamfered
931-2950-15-52S 23,6 74,93 3,81 - 024-2950-18-TSS 26,1 74,93 4,57 - CA8682250250CD 22,05 57,15 6,35 139,60 TP-1 SERIES DLC Coated Pin Chamfered
931-2950-17-93C 23,6 74,93 4,32 - 031-2750-15-51S 26,2 69,85 3,81 151 CA78718898155C 22,07 53,98 3,94 74,70 TP-1 SERIES - Chamfered
940-2500-16-51C 23,9 63,50 4,06 - 031-2925-20-TSS 26,2 74,30 5,08 - CA78718898165C 22,07 53,98 4,19 78,20 TP-1 SERIES - Chamfered
940-2500-16-51S 23,9 63,50 4,06 125 031-2930-17-51S 26,2 74,42 4,32 175 CA8692125270CD 22,07 53,98 6,86 137,20 TP-1 SERIES DLC Coated Pin Chamfered
940-2750-16-51S 23,9 69,85 4,06 137 040-2930-18-51S 26,4 74,42 4,57 180 CA8702125270CD 22,10 53,98 6,86 137,30 TP-1 SERIES DLC Coated Pin Chamfered
945-2250-15-51C 24 57,15 3,81 105 094-2930-13-52S 27,8 74,42 3,30 147 CA8712125270CD 22,12 53,98 6,86 137,60 TP-1 SERIES DLC Coated Pin Chamfered
945-2250-15-5DC 24 57,15 3,81 - 094-2930-15-51S 27,8 74,42 3,81 170 G8752500155 22,23 63,50 3,94 112,00 G SERIES - -
945-2500-14-51C 24 63,50 3,56 116 094-2930-15-52S 27,8 74,42 3,81 166 G8752500155C 22,23 63,50 3,94 112,00 G SERIES - Chamfered
945-2500-14-51S 24 63,50 3,56 117 094-2930-19-51S 27,8 74,42 4,83 201 G9052500155 23.00 63,50 3,94 117,00 G SERIES - -
945-2500-14-52C 24 63,50 3,56 116 094-2930-22-52S 27,8 74,42 5,59 - G9062500155 23,01 63,50 3,94 118,00 G SERIES - -
945-2500-18-52C 24 63,50 4,57 138 094-3000-22-52S 27,8 76,20 5,59 230 G9122500155 23,16 63,50 3,94 118,00 G SERIES - -
945-2750-14-51S 24 69,85 3,56 128 094-3125-19-51S 27,8 79,38 4,83 214 H9122750145 23,16 69,85 3,68 122,00 H SERIES - -
945-2850-14-51C 24 72,39 3,56 132 094-3125-25-TSS 27,8 79,38 6,35 - H9122750145C 23,16 69,85 3,68 122,00 H SERIES - Chamfered
975-2750-16-51S 24,8 69,85 4,06 144 094-3250-29-CTS 27,8 82,55 7,37 294 G9122750155 23,16 69,85 3,94 128,00 G SERIES - -
254 255
