PISTON PINS PISTON PINS

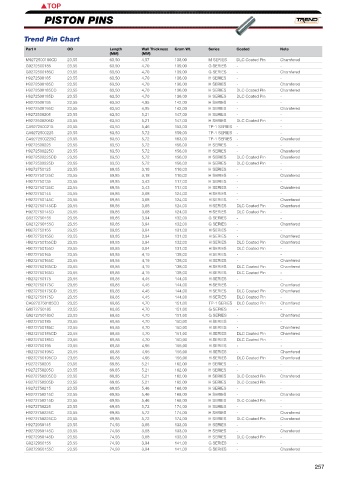

Trend Pin Chart Trend Pin Chart
Part # OD Length Wall Thickness Gram Wt. Series Coated Note Part # OD Length Wall Thickness Gram Wt. Series Coated Note
(MM) (MM) (MM) (MM)
G9122950155 23,16 74,93 3,94 138,00 G SERIES - - M9272500180CD 23,55 63,50 4,57 138,00 M SERIES DLC Coated Pin Chamfered
G9252250155C 23,50 57,15 3,94 131,00 G SERIES - Chamfered G9272500185 23,55 63,50 4,70 139,00 G SERIES - -
CA9252425195CD 23,50 61,60 4,95 137,80 TP-1 SERIES DLC Coated Pin Chamfered G9272500185C 23,55 63,50 4,70 139,00 G SERIES - Chamfered
CA9262125235C 23,52 53,98 5,97 143,00 TP-1 SERIES - Chamfered H9272500185 23,55 63,50 4,70 136,00 H SERIES - -
CA9262125235CD 23,52 53,98 5,97 137,00 TP-1 SERIES DLC Coated Pin Chamfered H9272500185C 23,55 63,50 4,70 136,00 H SERIES - Chamfered
CA9262425185C 23,52 61,60 4,70 137,00 TP-1 SERIES - Chamfered H9272500185CD 23,55 63,50 4,70 136,00 H SERIES DLC Coated Pin Chamfered
CA9262425185CD 23,52 61,60 4,70 132,50 TP-1 SERIES DLC Coated Pin Chamfered H9272500185D 23,55 63,50 4,70 136,00 H SERIES DLC Coated Pin -
CA9262425190CD 23,52 61,60 4,83 135,50 TP-1 SERIES DLC Coated Pin Chamfered H9272500195 23,55 63,50 4,95 142,00 H SERIES - -
CA9262425195CD 23,52 61,60 4,95 136,00 TP-1 SERIES DLC Coated Pin Chamfered H9272500195C 23,55 63,50 4,95 142,00 H SERIES - Chamfered
CA9272125235C 23,55 53,98 5,97 137,20 TP-1 SERIES - Chamfered H9272500205 23,55 63,50 5,21 147,00 H SERIES - -
CA9272125235CD 23,55 53,98 5,97 137,20 TP-1 SERIES DLC Coated Pin Chamfered H9272500205D 23,55 63,50 5,21 147,00 H SERIES DLC Coated Pin -
H9272200145 23,55 55,88 3,68 101,00 H SERIES - - CA9272500215 23,55 63,50 5,46 153,00 TP-1 SERIES - -
H9272200145C 23,55 55,88 3,68 101,00 H SERIES - Chamfered CA9272500225 23,55 63,50 5,72 159,00 TP-1 SERIES - -
G9272200155 23,55 55,88 3,94 106,00 G SERIES - - CA9272500225C 23,55 63,50 5,72 163,00 TP-1 SERIES - Chamfered
G9272200155C 23,55 55,88 3,94 106,00 G SERIES - Chamfered H9272500225 23,55 63,50 5,72 156,00 H SERIES - -
H9272200155 23,55 55,88 3,94 106,00 H SERIES - - H9272500225C 23,55 63,50 5,72 156,00 H SERIES - Chamfered
H9272200155CD 23,55 55,88 3,94 106,00 H SERIES DLC Coated Pin Chamfered H9272500225CD 23,55 63,50 5,72 156,00 H SERIES DLC Coated Pin Chamfered
H9272200165 23,55 55,88 4,19 112,00 H SERIES - - H9272500225D 23,55 63,50 5,72 156,00 H SERIES DLC Coated Pin -
H9272200165C 23,55 55,88 4,19 112,00 H SERIES - Chamfered H9272750125 23,55 69,85 3,18 110,00 H SERIES - -
H9272200165CD 23,55 55,88 4,19 112,00 H SERIES DLC Coated Pin Chamfered H9272750125C 23,55 69,85 3,18 110,00 H SERIES - Chamfered
H9272200185 23,55 55,88 4,70 122,00 H SERIES - - H9272750135 23,55 69,85 3,43 117,00 H SERIES - -
H9272200185C 23,55 55,88 4,70 122,00 H SERIES - Chamfered H9272750135C 23,55 69,85 3,43 117,00 H SERIES - Chamfered
H9272200185CD 23,55 55,88 4,70 122,00 H SERIES DLC Coated Pin Chamfered H9272750145 23,55 69,85 3,68 124,00 H SERIES - -
H9272200185D 23,55 55,88 4,70 122,00 H SERIES DLC Coated Pin H9272750145C 23,55 69,85 3,68 124,00 H SERIES - Chamfered
G9272250155C 23,55 57,15 3,94 131,00 G SERIES - Chamfered H9272750145CD 23,55 69,85 3,68 124,00 H SERIES DLC Coated Pin Chamfered
H9272250165 23,55 57,15 4,19 114,00 H SERIES - - H9272750145D 23,55 69,85 3,68 124,00 H SERIES DLC Coated Pin -
H9272250165C 23,55 57,15 4,19 114,00 H SERIES - Chamfered G9272750155 23,55 69,85 3,94 132,00 G SERIES - -
H9272250165CD 23,55 57,15 4,19 114,00 H SERIES DLC Coated Pin Chamfered G9272750155C 23,55 69,85 3,94 132,00 G SERIES - Chamfered
CA9272250215C 23,55 57,15 5,46 137,50 TP-1 SERIES - Chamfered H9272750155 23,55 69,85 3,94 131,00 H SERIES - -
CA9272250215CD 23,55 57,15 5,46 137,50 TP-1 SERIES DLC Coated Pin Chamfered H9272750155C 23,55 69,85 3,94 131,00 H SERIES - Chamfered
M9272250220 23,55 57,15 5,59 144,00 M SERIES - - H9272750155CD 23,55 69,85 3,94 132,00 H SERIES DLC Coated Pin Chamfered
M9272250220CD 23,55 57,15 5,59 144,00 M SERIES DLC Coated Pin Chamfered H9272750155D 23,55 69,85 3,94 131,00 H SERIES DLC Coated Pin -
CA9272250300CD 23,55 57,15 7,62 168,30 TP-1 SERIES DLC Coated Pin Chamfered H9272750165 23,55 69,85 4,19 138,00 H SERIES - -
CA9272300215CD 23,55 58,42 5,46 141,00 TP-1 SERIES DLC Coated Pin Chamfered H9272750165C 23,55 69,85 4,19 138,00 H SERIES - Chamfered
G9272400125 23,55 60,96 3,18 97,00 G SERIES - - H9272750165CD 23,55 69,85 4,19 138,00 H SERIES DLC Coated Pin Chamfered
G9272400125C 23,55 60,96 3,18 97,00 G SERIES - Chamfered H9272750165D 23,55 69,85 4,19 138,00 H SERIES DLC Coated Pin -
G9272400155 23,55 60,96 3,94 115,00 G SERIES - - H9272750175 23,55 69,85 4,45 144,00 H SERIES - -
G9272400155C 23,55 60,96 3,94 115,00 G SERIES - Chamfered H9272750175C 23,55 69,85 4,45 144,00 H SERIES - Chamfered
G9272500125 23,55 63,50 3,18 100,00 G SERIES - - H9272750175CD 23,55 69,85 4,45 144,00 H SERIES DLC Coated Pin Chamfered
G9272500125C 23,55 63,50 3,18 100,00 G SERIES - Chamfered H9272750175D 23,55 69,85 4,45 144,00 H SERIES DLC Coated Pin -
H9272500125 23,55 63,50 3,18 100,00 H SERIES - - CA9272750185CD 23,55 69,85 4,70 151,00 TP-1 SERIES DLC Coated Pin Chamfered
H9272500125C 23,55 63,50 3,18 100,00 H SERIES - Chamfered G9272750185 23,55 69,85 4,70 151,00 G SERIES - -
H9272500125D 23,55 63,50 3,18 100,00 H SERIES DLC Coated Pin - G9272750185C 23,55 69,85 4,70 151,00 G SERIES - Chamfered
H9272500135 23,55 63,50 3,43 106,00 H SERIES - - H9272750185 23,55 69,85 4,70 150,00 H SERIES - -
H9272500135C 23,55 63,50 3,43 106,00 H SERIES - Chamfered H9272750185C 23,55 69,85 4,70 150,00 H SERIES - Chamfered
H9272500135CD 23,55 63,50 3,43 106,00 H SERIES DLC Coated Pin Chamfered H9272750185CD 23,55 69,85 4,70 151,00 H SERIES DLC Coated Pin Chamfered
H9272500145 23,55 63,50 3,68 113,00 H SERIES - - H9272750185D 23,55 69,85 4,70 150,00 H SERIES DLC Coated Pin -
H9272500145C 23,55 63,50 3,68 113,00 H SERIES - Chamfered H9272750195 23,55 69,85 4,95 156,00 H SERIES - -
H9272500145CD 23,55 63,50 3,68 113,00 H SERIES DLC Coated Pin Chamfered H9272750195C 23,55 69,85 4,95 156,00 H SERIES - Chamfered
H9272500145D 23,55 63,50 3,68 113,00 H SERIES DLC Coated Pin - H9272750195CD 23,55 69,85 4,95 156,00 H SERIES DLC Coated Pin Chamfered
G9272500155 23,55 63,50 3,94 120,00 G SERIES - - H9272750205 23,55 69,85 5,21 162,00 H SERIES - -
G9272500155C 23,55 63,50 3,94 120,00 G SERIES - Chamfered H9272750205C 23,55 69,85 5,21 162,00 H SERIES - -
H9272500155 23,55 63,50 3,94 118,00 H SERIES - - H9272750205CD 23,55 69,85 5,21 162,00 H SERIES DLC Coated Pin Chamfered
H9272500155C 23,55 63,50 3,94 118,00 H SERIES - Chamfered H9272750205D 23,55 69,85 5,21 162,00 H SERIES DLC Coated Pin -
H9272500155CD 23,55 63,50 3,94 118,00 H SERIES DLC Coated Pin Chamfered H9272750215 23,55 69,85 5,46 168,00 H SERIES - -
H9272500155D 23,55 63,50 3,94 118,00 H SERIES DLC Coated Pin - H9272750215C 23,55 69,85 5,46 168,00 H SERIES - Chamfered
H9272500165 23,55 63,50 4,19 124,00 H SERIES - - H9272750215D 23,55 69,85 5,46 168,00 H SERIES DLC Coated Pin -
H9272500165C 23,55 63,50 4,19 124,00 H SERIES - Chamfered H9272750225 23,55 69,85 5,72 174,00 H SERIES - -
H9272500165CD 23,55 63,50 4,19 124,00 H SERIES DLC Coated Pin Chamfered H9272750225C 23,55 69,85 5,72 174,00 H SERIES - Chamfered
H9272500165D 23,55 63,50 4,19 124,00 H SERIES DLC Coated Pin - H9272750225CD 23,55 69,85 5,72 174,00 H SERIES DLC Coated Pin Chamfered
H9272500175 23,55 63,50 4,45 130,00 H SERIES - - H9272950145 23,55 74,93 3,68 133,00 H SERIES - -
H9272500175C 23,55 63,50 4,45 130,00 H SERIES - Chamfered H9272950145C 23,55 74,93 3,68 133,00 H SERIES - Chamfered
H9272500175D 23,55 63,50 4,45 130,00 H SERIES DLC Coated Pin - H9272950145D 23,55 74,93 3,68 133,00 H SERIES DLC Coated Pin -
M9272500180 23,55 63,50 4,57 138,00 M SERIES - - G9272950155 23,55 74,93 3,94 141,00 G SERIES - -
M9272500180C 23,55 63,50 4,57 138,00 M SERIES - Chamfered G9272950155C 23,55 74,93 3,94 141,00 G SERIES - Chamfered
