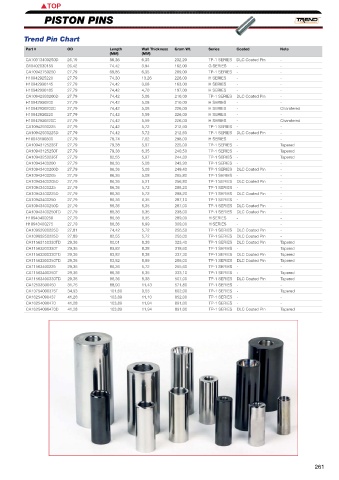

TOP TOP
PISTON PINS PISTON PINS

Trend Pin Chart Trend Pin Chart
Part # OD Length Wall Thickness Gram Wt. Series Coated Note Part # OD Length Wall Thickness Gram Wt. Series Coated Note
(MM) (MM) (MM) (MM)
H9902930195C 25,15 74,42 4,95 183,00 H SERIES - Chamfered CA10313400250D 26,19 86,36 6,35 232,20 TP-1 SERIES DLC Coated Pin -
H9902930195CD 25,15 74,42 4,95 183,00 H SERIES DLC Coated Pin Chamfered G10402930155 26,42 74,42 3,94 162,00 G SERIES - -
H9902930195D 25,15 74,42 4,95 183,00 H SERIES DLC Coated Pin - CA10942750250 27,79 69,85 6,35 209,00 TP-1 SERIES - -
H9902930200 25,15 74,42 5,08 187,00 H SERIES - - H10942925220 27,79 74,30 13,26 226,00 H SERIES - -
H9902930200D 25,15 74,42 5,08 187,00 H SERIES DLC Coated Pin - H10942930145 27,79 74,42 3,68 163,00 H SERIES - -
H9902930205 25,15 74,42 5,21 190,00 H SERIES - - H10942930185 27,79 74,42 4,70 197,00 H SERIES - -
H9902930205C 25,15 74,42 5,21 190,00 H SERIES - Chamfered CA10942930200D 27,79 74,42 5,08 210,00 TP-1 SERIES DLC Coated Pin -
H9902930205D 25,15 74,42 5,21 190,00 H SERIES DLC Coated Pin - H10942930200 27,79 74,42 5,08 210,00 H SERIES - -
H9902930215 25,15 74,42 5,46 197,00 H SERIES - - H10942930200C 27,79 74,42 5,08 226,00 H SERIES - Chamfered
H9902930215D 25,15 74,42 5,46 197,00 H SERIES DLC Coated Pin - H10942930220 27,79 74,42 5,59 226,00 H SERIES - -
CA9902930220 25,15 74,42 5,59 198,50 TP-1 SERIES - - H10942930220C 27,79 74,42 5,59 226,00 H SERIES - Chamfered
CA9902930220CD 25,15 74,42 5,59 198,50 TP-1 SERIES DLC Coated Pin - CA10942930225 27,79 74,42 5,72 212,60 TP-1 SERIES - -
CA9902930220D 25,15 74,42 5,59 198,50 TP-1 SERIES DLC Coated Pin - CA10942930225D 27,79 74,42 5,72 212,60 TP-1 SERIES DLC Coated Pin -
H9902930220 25,15 74,42 5,59 200,00 H SERIES - - H10943100300 27,79 78,74 7,62 298,00 H SERIES - -
H9902930220C 25,15 74,42 5,59 200,00 H SERIES - Chamfered CA10943125235T 27,79 79,38 5,97 225,00 TP-1 SERIES - Tapered
H9902930220CD 25,15 74,42 5,59 200,00 H SERIES DLC Coated Pin Chamfered CA10943125250T 27,79 79,38 6,35 240,50 TP-1 SERIES - Tapered
H9902930220D 25,15 74,42 5,59 200,00 H SERIES DLC Coated Pin - CA10943250235T 27,79 82,55 5,97 244,30 TP-1 SERIES - Tapered
H9902930225 25,15 74,42 5,72 203,00 H SERIES - - CA10943400200 27,79 86,36 5,08 243,90 TP-1 SERIES - -
H9902930225C 25,15 74,42 5,72 203,00 H SERIES - - CA10943400200D 27,79 86,36 5,08 249,40 TP-1 SERIES DLC Coated Pin -
H9902930225CD 25,15 74,42 5,72 203,00 H SERIES DLC Coated Pin Chamfered CA10943400205 27,79 86,36 5,08 265,80 TP-1 SERIES - -
H9902930225D 25,15 74,42 5,72 203,00 H SERIES DLC Coated Pin - CA10943400205D 27,79 86,36 5,21 256,80 TP-1 SERIES DLC Coated Pin -
CA9902950210D 25,15 74,93 5,33 194,10 TP-1 SERIES DLC Coated Pin - CA10943400225 27,79 86,36 5,72 288,20 TP-1 SERIES - -
CA9903100200D 25,15 78,74 5,08 198,00 TP-1 SERIES DLC Coated Pin - CA10943400225D 27,79 86,36 5,72 288,20 TP-1 SERIES DLC Coated Pin -
CA9903100250 25,15 78,74 6,35 229,00 TP-1 SERIES - - CA10943400250 27,79 86,36 6,35 287,10 TP-1 SERIES - -
CA9903100250D 25,15 78,74 6,35 229,00 TP-1 SERIES DLC Coated Pin - CA10943400250D 27,79 86,36 6,35 287,00 TP-1 SERIES DLC Coated Pin -
CA9912930220D 25,17 74,42 5,59 200,50 TP-1 SERIES DLC Coated Pin - CA10943400250TD 27,79 86,36 6,35 238,00 TP-1 SERIES DLC Coated Pin -
CA9922500185CD 25,20 63,50 4,70 149,20 TP-1 SERIES DLC Coated Pin Chamfered H10943400250 27,79 86,36 6,35 289,00 H SERIES - -
CA10002500140C 25,40 63,50 3,56 120,00 TP-1 SERIES - Chamfered H10943400275 27,79 86,36 6,99 309,00 H SERIES - -
CA10002500140CD 25,40 63,50 3,56 120,00 TP-1 SERIES DLC Coated Pin - CA10952930225D 27,81 74,42 5,72 256,50 TP-1 SERIES DLC Coated Pin -
G10002930155 25,40 74,42 3,94 155,00 G SERIES - - CA10983250225D 27,89 82,55 5,72 256,00 TP-1 SERIES DLC Coated Pin -
H10312740185 26,19 69,60 0,46 172,00 H SERIES - - CA11563150330TD 29,36 80,01 8,38 323,40 TP-1 SERIES DLC Coated Pin Tapered
H10312740185D 26,19 69,60 4,70 172,00 H SERIES DLC Coated Pin - CA11563300330T 29,36 83,82 8,38 318,60 TP-1 SERIES - Tapered
H10312750165 26,19 69,85 0,41 157,00 H SERIES - - CA11563300330TD 29,36 83,82 8,38 337,30 TP-1 SERIES DLC Coated Pin Tapered
H10312750170 26,19 69,85 0,43 162,00 H SERIES - - CA11563300350TD 29,36 83,82 8,89 286,00 TP-1 SERIES DLC Coated Pin Tapered
H10312750200 26,19 69,85 0,51 184,00 H SERIES - - CA11563400225 29,36 86,36 5,72 255,60 TP-1 SERIES - -
H10312750165C 26,19 69,85 4,19 157,00 H SERIES - Chamfered CA11563400250T 29,36 86,36 6,35 333,10 TP-1 SERIES - Tapered
H10312750170D 26,19 69,85 4,32 162,00 H SERIES DLC Coated Pin - CA11563400330TD 29,36 86,36 8,38 507,00 TP-1 SERIES DLC Coated Pin Tapered
CA10312750185C 26,19 69,85 4,70 172,50 TP-1 SERIES - Chamfered CA12503500450 31,75 88,90 11,43 571,80 TP-1 SERIES - -
CA10312750185CD 26,19 69,85 4,70 172,50 TP-1 SERIES DLC Coated Pin Chamfered CA13754000375T 34,93 101,60 9,53 602,00 TP-1 SERIES - Tapered
H10312750200C 26,19 69,85 5,08 184,00 H SERIES - Chamfered CA16254090437 41,28 103,89 11,10 852,00 TP-1 SERIES - -
H10312925200C 26,19 74,30 5,08 196,00 H SERIES - Chamfered CA16254090470 41,28 103,89 11,94 891,00 TP-1 SERIES - -
H10312925200 26,19 74,30 5,08 196,00 H SERIES - - CA16254090470D 41,28 103,89 11,94 891,00 TP-1 SERIES DLC Coated Pin Tapered
H10312925220C 26,19 74,30 5,59 210,00 H SERIES - Chamfered
H10312925220 26,19 74,30 5,59 210,00 H SERIES - -
G10312930155 26,19 74,42 3,94 160,00 G SERIES - -
G10312930155C 26,19 74,42 3,94 160,00 G SERIES - Chamfered
H10312930155 26,19 74,42 3,94 160,00 H SERIES - -
H10312930155D 26,19 74,42 3,94 160,00 H SERIES DLC Coated Pin -
H10312930170 26,19 74,42 4,32 172,00 H SERIES - -
H10312930170C 26,19 74,42 4,32 172,00 H SERIES - Chamfered
H10312930170D 26,19 74,42 4,32 172,00 H SERIES DLC Coated Pin -
H10312930180 26,19 74,42 4,57 180,00 H SERIES - -
H10312930180C 26,19 74,42 4,57 180,00 H SERIES - Chamfered
H10312930185 26,19 74,42 4,70 185,00 H SERIES - -
H10312930185C 26,19 74,42 4,70 185,00 H SERIES - Chamfered
H10312930185D 26,19 74,42 4,70 185,00 H SERIES DLC Coated Pin -
H10312930200 26,19 74,42 5,08 195,00 H SERIES - -
CA10312930215 26,19 74,42 5,46 213,20 TP-1 SERIES - -
CA10312930215D 26,19 74,42 5,46 213,20 TP-1 SERIES DLC Coated Pin -
H10312930215 26,19 74,42 5,46 207,00 H SERIES - -
CA10312930225 26,19 74,42 5,59 242,40 TP-1 SERIES - -
H10312930220 26,19 74,42 5,59 210,00 H SERIES - -
H10312930220C 26,19 74,42 5,59 210,00 H SERIES - Chamfered
CA10313100250D 26,19 78,74 6,35 196,70 TP-1 SERIES DLC Coated Pin -
CA10313125185D 26,19 79,38 4,70 266,80 TP-1 SERIES DLC Coated Pin -
