Part IV: Materials, Cameras, and Lighting Basics

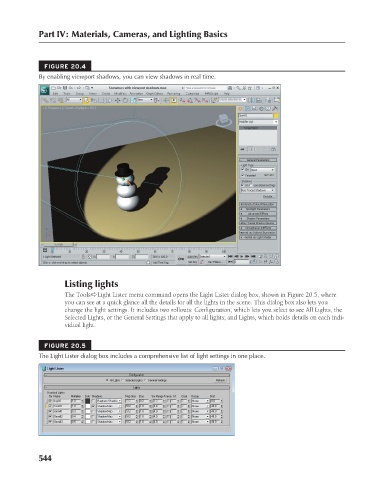

FIGURE 20.4
By enabling viewport shadows, you can view shadows in real time.

Listing lights
The Tools ➪ Light Lister menu command opens the Light Lister dialog box, shown in Figure 20.5, where
you can see at a quick glance all the details for all the lights in the scene. This dialog box also lets you
change the light settings. It includes two rollouts: Configuration, which lets you select to see All Lights, the
Selected Lights, or the General Settings that apply to all lights; and Lights, which holds details on each indi-
vidual light.

FIGURE 20.5
The Light Lister dialog box includes a comprehensive list of light settings in one place.

544
