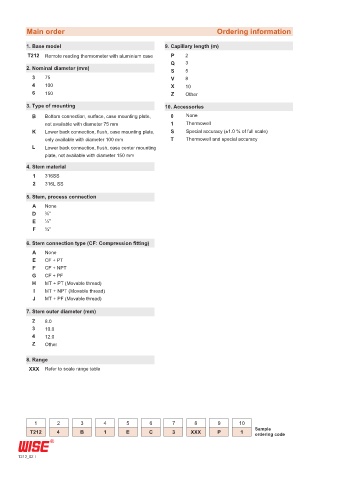

Page 52 - 2019종합카다로그_Temperature & Switch

Main order Ordering information

1. Base model 9. Capillary length (m)
T212 Remote reading thermometer with aluminium case P 2
Q 3
2. Nominal diameter (mm) S 5
3 75 V 8
4 100 X 10
6 150 Z Other

3. Type of mounting 10. Accessories
B Bottom connection, surface, case mounting plate, 0 None
not available with diameter 75 mm 1 Thermowell
K Lower back connection, flush, case mounting plate, S Special accuracy (±1.0 % of full scale)
only available with diameter 100 mm T Thermowell and special accuracy
L Lower back connection, flush, case center mounting
plate, not available with diameter 150 mm

4. Stem material
1 316SS
2 316L SS
5. Stem, process connection
A None
D ⅜"
E ½"
F ¾"
6. Stem connection type (CF: Compression fitting)
A None
E CF + PT
F CF + NPT
G CF + PF
H MT + PT (Movable thread)
I MT + NPT (Movable thread)
J MT + PF (Movable thread)

7. Stem outer diameter (mm)
2 8.0
3 10.0
4 12.0
Z Other

8. Range
XXX Refer to scale range table

1 2 3 4 5 6 7 8 9 10
Sample
T212 4 B 1 E C 3 XXX P 1 ordering code

T212_02
