Page 215 - CATALOGUE (32)

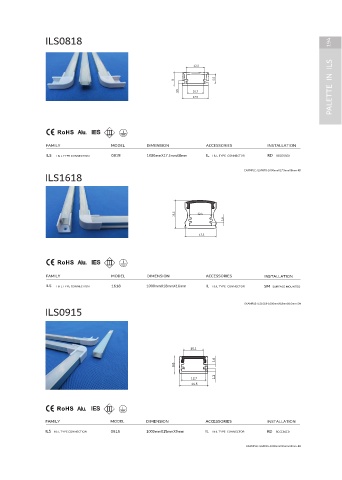

193 CI3030A ILS0818 194

PALETTE IN CI/ILS 8 1.5 10.7 5.5 PALETTE IN CI/ILS PALETTE IN ILS
12.3

17.5

Ⅲ
Ⅲ

FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION

FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION
CI CORNER INSTALLATION 3030A 1000mmX30mmX30mm AP ALUMINUM PROFILE RD RECESSED
PD PC DIFFUSER ILS I & L TYPE CONNECTION 0818 1000mmX17.5mmX8mm IL I & L TYPE CONNECTOR RD RECESSED
ED END CAPS (SPRING CLIPS)
CL EXAMPLE: CI3030A-1000mmX30mmX30mm-RD
CLIPS (PLASTIC)

EXAMPLE: ILS0878-1000mmX17.5mmX8mm-RD
CI3030B ILS1618

15.5 12.4
1.6
30 20.3
17.5

30
Ⅲ Ⅲ

FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION
CI CORNER INSTALLATION 3030B 1000mmX30mmX30mm AP ALUMINUM PROFILE RD RECESSED
PD PC DIFFUSER ILS I & L TYPE CONNECTION 1618 1000mmX18mmX16mm IL I & L TYPE CONNECTOR SM SURFACE MOUNTED
ED END CAPS (SPRING CLIPS)

CL CLIPS (PLASTIC) EXAMPLE: CI3030B-1000mmX30mmX30mm-RD

EXAMPLE: ILS1618-1000mmX18mmX16mm-SM
I & L TYPE CONNECT CHANNEL ILS0915

ILS1127

10.1
1.6
8.8

12.7 1.2
14.5
16
10.6
16
Ⅲ

Ⅲ
FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION

FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION ILS I & L TYPE CONNECTION 0915 1000mmX15mmX9mm IL I & L TYPE CONNECTOR RD RECESSED
ILS I & L TYPE CONNECTION 1127 1000mmX27mmX11mm IL I & L TYPE CONNECTOR SM SURFACE MOUNTED
EXAMPLE: ILS1127-1000mmX27mmX11mm-SM EXAMPLE: ILS0915-1000mmX15mmX9mm-RD
