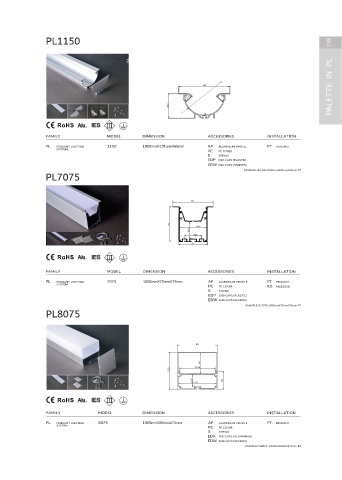

Page 219 - CATALOGUE (32)

197 PL3895 PL1150 198

PALETTE IN PL 95.2 32.53 50.59 38 49.3 12.3 101 PALETTE IN PL

27.61

Ⅲ 29 Ⅲ 40

FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION
PL PENDANT LIGHTING 3895 1000mmX38mmX95mm AP ALUMINIUM PROFILE PT PENDANT PL PENDANT LIGHTING 1150 1000mmX101mmX40mm AP ALUMINIUM PROFILE PT PENDANT
SYSTEM SYSTEM
PC PC COVER PC PC COVER
S STRING S STRING
EDP END CAPS (PLASTIC) EDP END CAPS (PLASTIC)
EDW END CAPS (SCREWS) EDW END CAPS (SCREWS)
EXAMPLE: PL5068-1000mmX38mmX95mm-PT EXAMPLE: PL1150-1000mmX101mmX40mm-PT
PL5075 PL7075

70
50
50
15.8 18.5
75
46.4
75 35.3
35.7 30.4
41
50
Ⅲ
Ⅲ

FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION
PL PENDANT LIGHTING 7075 1000mmX70mmX75mm AP ALUMINIUM PROFILE PT PENDANT
SYSTEM
PL PENDANT LIGHTING 5075 1000mmX50mmX70mm AP ALUMINIUM PROFILE PT PENDANT PC PC COVER RD RECESSED
SYSTEM
PC PC COVER S STRING
EDP END CAPS (PLASTIC) EDP END CAPS (PLASTIC)
EDW END CAPS (SCREWS) EDW END CAPS (SCREWS)
EXAMPLE: PL1060-1000mmX100mmX60mm-PT EXAMPLE: PL7075-1000mmX70mmX75mm-PT
PL6545 PL8075

60
65.01

42
45 71.34
28.4 75.2
23.8 36
36.4 77.6
50.01
Ⅲ
Ⅲ

FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION
FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION
PL PENDANT LIGHTING 8075 1000mmX80mmX75mm AP ALUMINIUM PROFILE PT PENDANT
PL PENDANT LIGHTING 6545 1000mmX65mmX45mm AP ALUMINIUM PROFILE PT PENDANT SYSTEM PC PC COVER
SYSTEM
PC PC COVER RD RECESSED S STRING
EDP END CAPS (PLASTIC) EDA END CAPS (ALUMINIUM)
EDW END CAPS (SCREWS) EDW END CAPS (SCREWS)
EXAMPLE: PL6545-1000mmX65mmX45mm-RD EXAMPLE: PL8075-1000mmX80mmX75mm-RD
