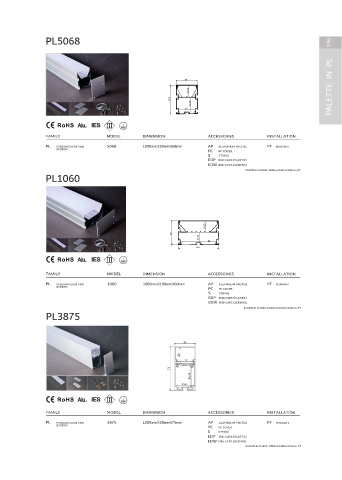

195 PL6060 PL5068 196
PENDANT LIGHTING CHANNEL

PALETTE IN PL 60 67.5 50 24.13 32.55 PALETTE IN PL

60 23 49.1 39
27.7 Ⅲ
49

FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION
AP
Ⅲ PL PENDANT LIGHTING 5068 1000mmX50mmX68mm PC ALUMINIUM PROFILE PT PENDANT
SYSTEM
PC COVER
S STRING
FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION EDP END CAPS (PLASTIC)
EDW END CAPS (SCREWS)
PL PENDANT LIGHTING 6060 1000mmX60mmX60mm AP ALUMINIUM PROFILE PT PENDANT EXAMPLE: PL5068-1000mmX50mmX68mm-PT
SYSTEM
PC PC COVER
S STRING PL1060
EDP END CAPS (PLASTIC)
PL6035 EDW END CAPS (SCREWS) EXAMPLE: PL6060-1000mmX60mmX60mm-PT

24.39
60
60
24.35
89
35 28.4 100
49.2
Ⅲ

Ⅲ
FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION
PL PENDANT LIGHTING 1060 1000mmX100mmX60mm AP ALUMINIUM PROFILE PT PENDANT
FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION SYSTEM PC
S PC COVER
PL PENDANT LIGHTING 6035 1000mmX60mmX35mm AP ALUMINIUM PROFILE PT PENDANT STRING
SYSTEM EDP END CAPS (PLASTIC)
PC PC COVER
S STRING EDW END CAPS (SCREWS)
EDP END CAPS (PLASTIC) EXAMPLE: PL1060-1000mmX100mmX60mm-PT
EDW END CAPS (SCREWS) PL3875
PL5022 EXAMPLE: PL6035-1000mmX60mmX35mm-PT

35

26
27
5.5 12.2 73
22.7 27 28.2 27 Ø5.5 34.78
Ø2.6
150 31.2

Ⅲ Ⅲ

FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION
FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION
PL PENDANT LIGHTING 5022 1000mmX150mmX22mm AP ALUMINIUM PROFILE PT PENDANT PL PENDANT LIGHTING 3875 1000mmX38mmX75mm AP ALUMINIUM PROFILE PT PENDANT
SYSTEM SYSTEM PC
PC PC COVER PC COVER
S STRING S STRING
EDP END CAPS (PLASTIC) EDP END CAPS (PLASTIC)
EDW END CAPS (SCREWS) EDW END CAPS (SCREWS)
EXAMPLE: PL5022-1000mmX150mmX22mm-PT EXAMPLE: PL3875-1000mmX38mmX75mm-PT
