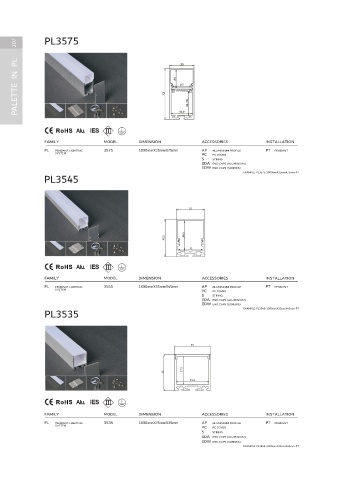

207 PL3575 PL5050A 208
PALETTE IN PL 50 18.5 21 50 PALETTE IN PL
Ⅲ Ⅲ
FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION
PL PENDANT LIGHTING 3575 1000mmX35mmX75mm AP ALUMINIUM PROFILE PT PENDANT PL PENDANT LIGHTING 5050A 1000mmX50mmX50mm AP ALUMINIUM PROFILE PT PENDANT
SYSTEM SYSTEM
PC PC COVER PC PC COVER
S STRING S STRING
EDA END CAPS (ALUMINIUM) EDA END CAPS (ALUMINIUM)
EDW END CAPS (SCREWS) EDW END CAPS (SCREWS)
EXAMPLE: PL3575-1000mmX35mmX75mm-PT EXAMPLE: PL5050A-1000mmX50mmX50mm-PT
PL3545 PL5050B
35
50
18.5
36.5 50
45.5
22.1
31
Ⅲ Ⅲ
FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION
PL PENDANT LIGHTING 3545 1000mmX35mmX45mm AP ALUMINIUM PROFILE PT PENDANT PL PENDANT LIGHTING 5050B 1000mmX50mmX50mm AP ALUMINIUM PROFILE PT PENDANT
SYSTEM PC PC COVER SYSTEM PC PC COVER
S STRING S STRING
EDA END CAPS (ALUMINIUM) EDA END CAPS (ALUMINIUM)
EDW END CAPS (SCREWS) EDW END CAPS (SCREWS)
EXAMPLE: PL3545-1000mmX35mmX45mm-PT EXAMPLE: PL5050-1000mmX50mmX50mm-PT
PL3535 PL5070A
50
35
22.8
70
27.5
35
35.3
31.4
46
Ⅲ Ⅲ
FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION
PL PENDANT LIGHTING 3535 1000mmX35mmX35mm AP ALUMINIUM PROFILE PT PENDANT PL PENDANT LIGHTING 5070A 1000mmX50mmX70mm AP ALUMINIUM PROFILE PT PENDANT
SYSTEM SYSTEM
PC PC COVER PC PC COVER
S STRING S STRING
EDA END CAPS (ALUMINIUM) EDP END CAPS (PLASTIC)
EDW END CAPS (SCREWS) EDW END CAPS (SCREWS)
EXAMPLE: PL3545-1000mmX35mmX45mm-PT EXAMPLE: PL5070A-1000mmX50mmX70mm-PT
