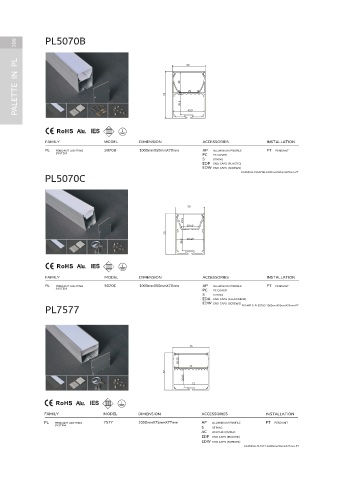

Page 230 - CATALOGUE (32)

209 PL5070B 50 PL7080 210

PALETTE IN PL 70 30 30.6 29 80 33.3 48 37 PALETTE IN PL

62

Ⅲ 45.9 Ⅲ

FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION
PL PENDANT LIGHTING 5070B 1000mmX50mmX70mm AP ALUMINIUM PROFILE PT PENDANT PL PENDANT LIGHTING 7080 1000mm X 70mm X 80mm AP ALUMINIUM PROFILE PT PENDANT
SYSTEM SYSTEM
PC PC COVER PC PC COVER
S STRING S STRING
EDP END CAPS (PLASTIC) EDP END CAPS (PLASTIC)
EDW END CAPS (SCREWS) EDW END CAPS (SCREWS)
EXAMPLE: PL5070B-1000mmX50mmX70mm-PT EXAMPLE: PL7080-1000mmX70mmX80mm-PT
PL5070C PL1070

50
100
100
23.5
29.40
26 26
70
70 70
36.3 46.40 30.20 30.20 96 96

Ⅲ Ⅲ

FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION
PL PENDANT LIGHTING 5070C 1000mmX50mmX70mm AP ALUMINIUM PROFILE PT PENDANT PL PENDANT LIGHTING 1070 1000mmX100mmX70mm AP ALUMINIUM PROFILE PT PENDANT
SYSTEM SYSTEM
PC PC COVER AC ACRYLIC (PMMA)
S STRING S STRING
EDA END CAPS (ALUMINIUM) EDA END CAPS (ALUMINIUM)
EDW END CAPS (SCREWS) EXAMPLE: PL5070C-1000mmX50mmX70mm-PT EDW END CAPS (SCREWS)
PL7577 EXAMPLE: PL1070-1000mmX100mmX70mm-PT
PL9999

99
75
26.15 45
71
89
77 99
36.05 42.5
71 78.7

Ⅲ Ⅲ

FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION
PL PENDANT LIGHTING 7577 1000mmX75mmX77mm AP ALUMINIUM PROFILE PT PENDANT PL PENDANT LIGHTING 9999 1000mmX99mmX99mm AP ALUMINIUM PROFILE PT PENDANT
SYSTEM SYSTEM
S STRING S STRING
AC ACRYLIC (PMMA) AC ACRYLIC (PMMA)
EDP END CAPS (PLASTIC) EDA END CAPS (ALUMINIUM)
EDW END CAPS (SCREWS) EDW END CAPS (SCREWS)
EXAMPLE: PL7577-1000mmX75mmX77mm-PT EXAMPLE: PL9999-1000mmX99mmX99mm-PT
