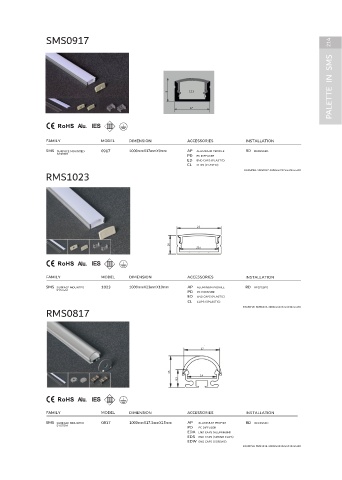

213 SMS2027A SMS0917 214

PALETTE IN SMS 27 20.6 20.5 9 9 12.3 PALETTE IN SMS

12.3
17.40

Ⅲ 17 17
Ⅲ

FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION
SMS SURFACE MOUNTED 2027A 1000mm X 20mm X 27mm AP ALUMINUM PROFILE RD RECESSED SMS SURFACE MOUNTED 0917 1000mmX17mmX9mm AP ALUMINUM PROFILE RD RECESSED
SYSTEM SYSTEM
PD PC DIFFUSER PD PC DIFFUSER
EDP END CAPS (PLASTIC) ED END CAPS (PLASTIC)
EDS END CAPS (SPRING CLIPS) CL CLIPS (PLASTIC)
EXAMPLE: SMS2027A-1000mmX20mmX27mm-RD EXAMPLE: SMS0917-1000mmX17mmX9mm-RD
SMS2027B RMS1023

20.5
23
20.60
27
17.40
10
20.7

Ⅲ Ⅲ

FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION
SMS SURFACE MOUNTED 2027B 1000mm X 20mm X 27mm AP ALUMINUM PROFILE RD RECESSED SMS SURFACE MOUNTED 1023 1000mmX23mmX10mm AP ALUMINUM PROFILE RD RECESSED
SYSTEM SYSTEM PD PC DIFFUSER
PD PC DIFFUSER
ED END CAPS (PLASTIC)
EDP END CAPS (PLASTIC)
CL CLIPS (SPLASTIC)
EDS END CAPS (SPRING CLIPS)
EXAMPLE: SMS2027B-1000mmX20mmX27mm-RD EXAMPLE: SMS1023-1000mmX23mmX10mm-RD
SMS1216 RMS0817

17
16

15
14
12 8.5
11.2

Ⅲ
Ⅲ

FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION
FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION
SMS SURFACE MOUNTED 0817 1000mmX17.3mmX15mm AP ALUMINUM PROFILE RD RECESSED
SMS SURFACE MOUNTED 1216 1000mm X 16mm X 12mm AP ALUMINUM PROFILE RD RECESSED SYSTEM PD PC DIFFUSER
SYSTEM
PD PC DIFFUSER EDA END CAPS (ALUMINUM)
EDP END CAPS (PLASTIC) EDS END CAPS (SPRING CLIPS)
EDS END CAPS (SPRING CLIPS) EDW END CAPS (SCREWS)
EXAMPLE: SMS1216-1000mmX16mmX12mm-RD EXAMPLE: SMS1216-1000mmX16mmX12mm-RD
