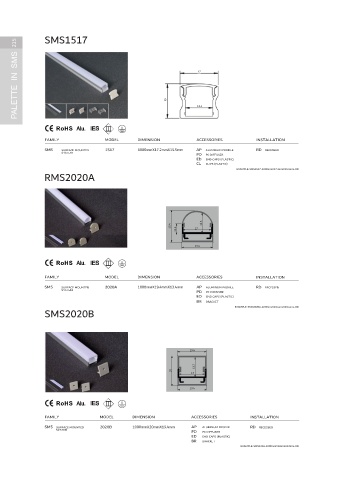

215       SMS1517                                                                                                                    SMS2021                                                                                               216


       PALETTE  IN  SMS                                     15          12.4                                                                                                              19.5    17                                              PALETTE  IN  SMS


                                                                        17










                                       Ⅲ                                                                                                                          Ⅲ                              21


                 FAMILY                MODEL      DIMENSION            ACCESSORIES           INSTALLATION                                   FAMILY              MODEL     DIMENSION            ACCESSORIES          INSTALLATION
                 SMS   SURFACE MOUNTED  1517      1000mmX17.2mmX15.5mm  AP  ALUMINUM PROFILE  RD  RECESSED                                  SMS  SURFACE MOUNTED  2021    1000mmX21mmX19.5mm   AP  ALUMINUM PROFILE  RD  RECESSED
                       SYSTEM
                                                                       PD  PC DIFFUSER                                                          SYSTEM                                         PD  PC DIFFUSER
                                                                       ED  END CAPS (PLASTIC)                                                                                                  EDP END CAPS (PLASTIC)
                                                                       CL  CLIPS (PLASTIC)                                                                                                     EDS END CAPS (SPRING CLIPS)
                                                                                      EXAMPLE: SMS1517-1000mmX17.2mmX15.5mm-RD                                                                                    EXAMPLE: SMS2021-1000mmX21mmX19.5mm-RD
                 RMS2020A                                                                                                                   SMS4135








                                                                         12.5                                                                                                                    33.6
                                                              19.4
                                                             19.4                                                                                                                        41.5
                                                                11.4   17
                                                                11.4
                                                                       19.4
                                                                       19.4
                                                                                                                                                                                                 35
                                       Ⅲ                                                                                                                          Ⅲ



                 FAMILY                MODEL      DIMENSION            ACCESSORIES           INSTALLATION                                   FAMILY              MODEL     DIMENSION            ACCESSORIES         INSTALLATION
                 SMS   SURFACE MOUNTED  2020A     1000mmX19.4mmX13.4mm  AP  ALUMINUM PROFILE  RD  RECESSED                                  SMS SURFACE MOUNTED  4135     1000mmX35mmX41mm     AP  ALUMINUM PROFILE  RD  RECESSED
                       SYSTEM                                                                                                                   SYSTEM
                                                                       PD  PC DIFFUSER                                                                                                         PD  PC DIFFUSER
                                                                       ED  END CAPS (PLASTIC)                                                                                                  ED  END CAPS (PLASTIC)
                                                                       BR  BRACKET                                                                                                             BR  BRACKET
                                                                                     EXAMPLE: SMS2020A-1000mmX19.4mmX19.4mm-RD                                                                                    EXAMPLE: SMS4135-1000mmX35mmX41mm-RD
                 SMS2020B                                                                                                                   RMS3542





                                                                                                                                                                                                 42
                                                                     19.4

                                                                       12.7                                                                                                                       33.6
                                                              20                                                                                                                         35
                                                                     17

                                                                     19.4


                                       Ⅲ                                                                                                                          Ⅲ

                 FAMILY              MODEL      DIMENSION             ACCESSORIES          INSTALLATION                                     FAMILY              MODEL     DIMENSION            ACCESSORIES         INSTALLATION
                 SMS  SURFACE MOUNTED  2020B    1000mmX20mmX19.4mm    AP  ALUMINUM PROFILE  RD  RECESSED                                    SMS SURFACE MOUNTED  3542     1000mmX42mmX35mm     AP  ALUMINUM PROFILE  RD  RECESSED
                     SYSTEM                                                                                                                     SYSTEM
                                                                      PD  PC DIFFUSER                                                                                                          PD  PC DIFFUSER
                                                                      ED  END CAPS (PLASTIC)                                                                                                   ED  END CAPS (PLASTIC)
                                                                      BR  BRACKET                                                                                                              BR  BRACKET
                                                                                       EXAMPLE: SMS1216-1000mmX16mmX12mm-RD                                                                                        EXAMPLE: SMS3542-1000mmX42mmX35mm-RD
