Page 238 - CATALOGUE (32)

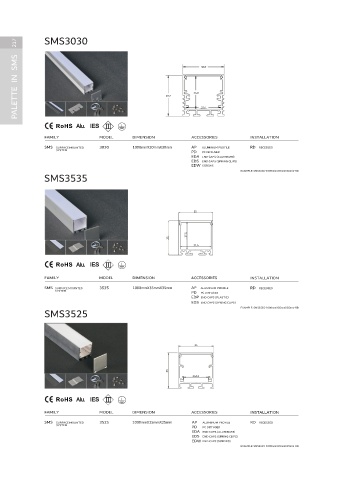

217 SMS3030 SMS2033 218

PALETTE IN SMS 29.7 24.0 30.0 20.14 11.3 33.4 PALETTE IN SMS

27.5

Ⅲ 25.6 Ⅲ

FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION
SMS SURFACE MOUNTED 3030 1000mmX30mmX30mm AP ALUMINUM PROFILE RD RECESSED SMS SURFACE MOUNTED 2033 1000mmX33mmX20mm AP ALUMINUM PROFILE RD RECESSED
SYSTEM SYSTEM
PD PC DIFFUSER PD PC DIFFUSER
EDA END CAPS (ALUMINUM) EDA END CAPS (ALUMINUM)
EDS END CAPS (SPRING CLIPS) EDS END CAPS (SPRING CLIPS)
EDW SCREWS EDW END CAPS (SCREWS)
EXAMPLE: SMS3030-1000mmX30mmX30mm-RD EXAMPLE: SMS2033-1000mmX33mmX20mm-RD
SMS3535 SMS1022

35 20.4

12 15.7 10
27.5
35
31.4 22.75

Ⅲ
Ⅲ

FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION
SMS SURFACE MOUNTED 1022 1000mmX22mmX10mm AP ALUMINUM PROFILE RD RECESSED
SMS SURFACE MOUNTED 3535 1000mmX35mmX35mm AP ALUMINUM PROFILE RD RECESSED SYSTEM PD PC DIFFUSER
SYSTEM
PD PC DIFFUSER EDA END CAPS (ALUMINUM)
EDP END CAPS (PLASTIC) EDS END CAPS (SPRING CLIPS)
EDS END CAPS (SPRING CLIPS) EDW END CAPS (SCREWS)
EXAMPLE: SMS3535-1000mmX35mmX35mm-RD EXAMPLE: SMS1022-1000mmX22mmX10mm-RD
SMS3525 SMS1525

35
25

18
35 15
18
24.14 16

Ⅲ Ⅲ

FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION
SMS SURFACE MOUNTED 3525 1000mmX35mmX25mm AP ALUMINUM PROFILE RD RECESSED SMS SURFACE MOUNTED 1525 1000mmX25mmX15mm AP ALUMINUM PROFILE RD RECESSED
SYSTEM SYSTEM
PD PC DIFFUSER PD PC DIFFUSER
EDA END CAPS (ALUMINUM) EDA END CAPS (ALUMINUM)
EDS END CAPS (SPRING CLIPS) EDS END CAPS (SPRING CLIPS)
EDW END CAPS (SCREWS) EDW END CAPS (SCREWS)
EXAMPLE: SMS3525-1000mmX35mmX25mm-RD EXAMPLE: SMS1525-1000mmX25mmX15mm-RD
