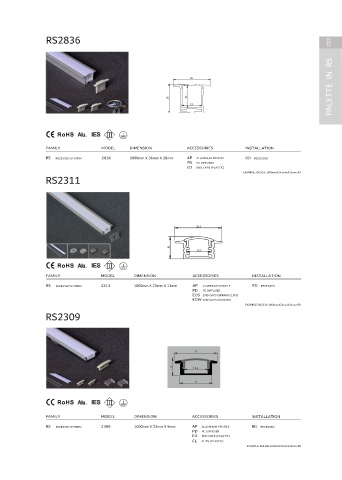

Page 243 - CATALOGUE (32)

221 RS2415 RS2836 222

PALETTE IN RS 19 24 28 21 36 19 PALETTE IN RS

Ⅲ 12.60
Ⅲ

FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION
RS RECESSED SYSTEM 2415 1000mm X 24.5mm X 15mm AP ALUMINUM PROFILE RD RECESSED
PD PC DIFFUSER RS RECESSED SYSTEM 2836 1000mm X 36mm X 28mm AP ALUMINUM PROFILE RD RECESSED
ED END CAPS (PLASTIC) PD PC DIFFUSER
CL CLIPS (PLASTIC) ED END CAPS (PLASTIC)
EXAMPLE: RS2415-1000mmX24.5mmX15mm-RD EXAMPLE: RS2415-1000mmX24.5mmX15mm-RD
RS5355 RS2311

55.5
23.5
35 33.6

11
12.5
35
Ⅲ Ⅲ

FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION
FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION
RS RECESSED SYSTEM 2311 1000mm X 23mm X 11mm AP ALUMINUM PROFILE RD RECESSED
RS RECESSED SYSTEM 5355 1000mm X 55mm X 35mm AP ALUMINUM PROFILE RD RECESSED PD PC DIFFUSER
PD PC DIFFUSER EDS END CAPS (SPRING CLIPS)
ED END CAPS (PLASTIC) EDW END CAPS (SCREWS)
EXAMPLE: RS5355-1000mmX55mmX35mm-RD
EXAMPLE: RS2311-1000mmX23mmX11mm-RD
RS0722 RS2309

23
22.5
9 12.4

7
11.4 17

Ⅲ Ⅲ

FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION
RS RECESSED SYSTEM 0722 1000mm X 22.5mm X 7mm AP ALUMINUM PROFILE RD RECESSED RS RECESSED SYSTEM 2309 1000mm X 23mm X 9mm AP ALUMINUM PROFILE RD RECESSED
PD PC DIFFUSER PD PC DIFFUSER
EDP END CAPS (PLASTIC) ED END CAPS (PLASTIC)
EPS END CAPS (SPRING CLIPS) CL CLIPS (PLASTIC)
EXAMPLE: RS0722-1000mmX22.5mmX7mm-RD EXAMPLE: RS2309-1000mmX23mmX9mm-RD
