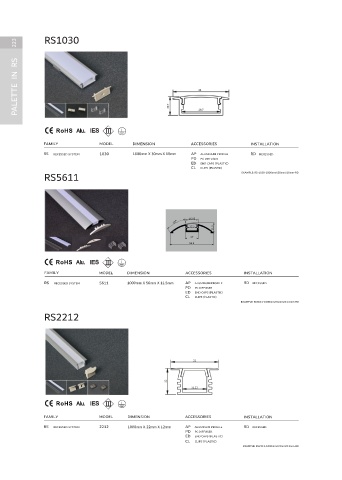

223 RS1030
PALETTE IN RS 10.7 30
Ⅲ 20.7
FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION
RS RECESSED SYSTEM 1030 1000mm X 30mm X 10mm AP ALUMINUM PROFILE RD RECESSED
PD PC DIFFUSER
ED END CAPS (PLASTIC)
CL CLIPS (PLASTIC)
EXAMPLE: RS-1030-1000mmX30mmX10mm-RD
RS5611
16.05
28°
11.5
12.5
17
56.5
Ⅲ
FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION
RS RECESSED SYSTEM 5611 1000mm X 56mm X 11.5mm AP ALUMINUM PROFILE RD RECESSED
PD PC DIFFUSER
ED END CAPS (PLASTIC)
CL CLIPS (PLASTIC)
EXAMPLE: RS5611-1000mmX56mmX11.5mm-RD
RS2212
22
12
11.22
Ⅲ
FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION
RS RECESSED SYSTEM 2212 1000mm X 22mm X 12mm AP ALUMINUM PROFILE RD RECESSED
PD PC DIFFUSER
ED END CAPS (PLASTIC)
CL CLIPS (PLASTIC)
EXAMPLE: RS2212-1000mmX22mmX12mm-RD
