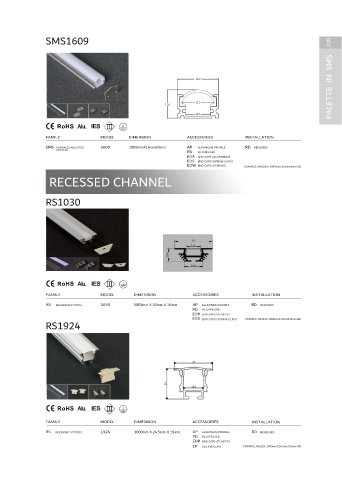

Page 241 - CATALOGUE (32)

219 SMS2015 SMS1609 220

PALETTE IN SMS 15 20 11.6 16.9 PALETTE IN SMS

16
13.1

Ⅲ Ⅲ 10.1

FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION
SMS SURFACE MOUNTED 2015 1000mmX20mmX15mm AP ALUMINUM PROFILE RD RECESSED SMS SURFACE MOUNTED 1609 1000mmX16mmX9mm AP ALUMINUM PROFILE RD RECESSED
SYSTEM SYSTEM
PD PC DIFFUSER PD PC DIFFUSER
EDA END CAPS (ALUMINUM) EDA END CAPS (ALUMINUM)
EDS END CAPS (SPRING CLIPS) EDS END CAPS (SPRING CLIPS)
EDW END CAPS (SCREWS) EDW END CAPS (SCREWS) EXAMPLE: SMS1609-1000mmX16mmX9mm-RD
EXAMPLE: SMS2015-1000mmX20mmX15mm-RD
SMS2020
RECESSED CHANNEL

RS1030
20

16
20.0

30
11.4
10.5
Ⅲ
14.8

FAMILY DIMENSION ACCESSORIES INSTALLATION
MODEL
SMS SURFACE MOUNTED 2020 1000mmX20mmX20mm AP ALUMINUM PROFILE RD RECESSED Ⅲ
SYSTEM
PD PC DIFFUSER

EDA END CAPS (ALUMINUM)
EDS END CAPS (SPRING CLIPS) FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION
EDW END CAPS (SCREWS)
RS 1030 1000mm X 30mm X 10mm AP ALUMINUM PROFILE RD RECESSED
EXAMPLE: SMS2020-1000mmX20mmX20mm-RD RECESSED SYSTEM PD PC DIFFUSER
SMS1115 EDP END CAPS (PLASTIC)
EDS END CAPS (SPRING CLIPS) EXAMPLE: RS1030-1000mmX30mmX10mm-RD
RS1924

11 24
12.5

15.5
19
12.6
Ⅲ
Ⅲ
FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION

SMS SURFACE MOUNTED 1115 1000mmX5mmX11mm AP ALUMINUM PROFILE RD RECESSED FAMILY MODEL DIMENSION ACCESSORIES INSTALLATION
SYSTEM
PD PC DIFFUSER
EDA END CAPS (ALUMINUM) RS RECESSED SYSTEM 1924 1000mm X 24.5mm X 19mm AP ALUMINUM PROFILE RD RECESSED
EDS END CAPS (SPRING CLIPS) PD PC DIFFUSER
EDW END CAPS (SCREWS) EDP END CAPS (PLASTIC)
EXAMPLE: SMS1115-1000mmX15mmX11mm-RD CP CEILING CLIPS EXAMPLE: RS1924-1000mmX24.5mmX19mm-RD
