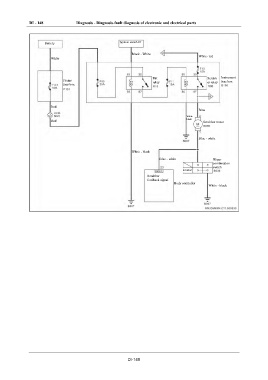

DI - 148 Diagnosis - Diagnosis-fault diagnosis of electronic and electrical parts
Battery Ignition switch G1
Black - White
White- red
White
IG1 Scrubb Instrument
Frame
fuse box relay er relay fuse box
Red
Blue
White -
black
Red Scrubber motor
Blue - white
White - black
Blue - white Wiper
combination
switch
Scrubber
Scrubber
feedback signal
Body controller
White - black
