IN - 2 Introduction - How to Use this Manual

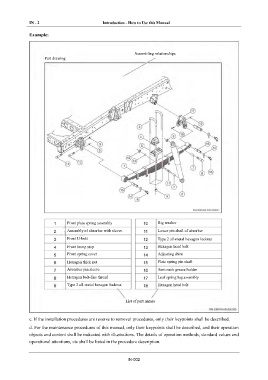

Example:

Assembling relationships
Part drawing

Front plate spring assembly Big washer

Assembly of absorber with sleeve Lower pin shaft of absorber
Front U-bolt Type 2 all-metal hexagon locknut
Front bump stop Hexagon head bolt
Front spring cover Adjusting shim
Hexagon thick nut Plate spring pin shaft
Absorber pin sleeve Bent neck grease holder
Hexagon bolt-fine thread Leaf spring lug assembly
Type 2 all-metal hexagon locknut Hexagon head bolt

List of part names

c. If the installation procedures are reverse to removal procedures, only their keypoints shall be described.
d. For the maintenance procedures of this manual, only their keypoints shall be described, and their operation
objects and content shall be indicated with illustrations. The details of operation methods, standard values and
operational attentions, etc shall be listed in the procedure description.
