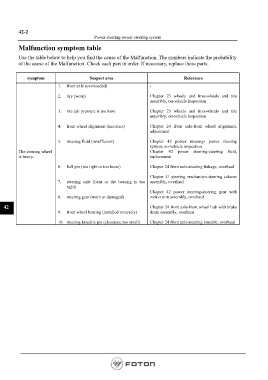

42-2
Power steering-power steering system
Malfunction symptom table

Use the table below to help you find the cause of the Malfunction. The numbers indicate the probability
of the cause of the Malfunction. Check each part in order. If necessary, replace these parts.

symptom Suspect area Reference
1. front axle (overloaded) -

2. tire (worn) Chapter 23 wheels and tires-wheels and tire
assembly, on-vehicle inspection

3. tire (air pressure is too low) Chapter 23 wheels and tires-wheels and tire
assembly, on-vehicle inspection
4. front wheel alignment (incorrect) Chapter 24 front axle-front wheel alignment,
adjustment
5. steering fluid (insufficient) Chapter 42 power steering- power steering
system, on-vehicle inspection
The steering wheel Chapter 42 power steering-steering fluid,
is heavy. replacement

6. ball pin (too tight or too loose) Chapter 24 front axle-steering linkage, overhaul
Chapter 41 steering mechanism-steering column
7. steering axle (bent or the bearing is too assembly, overhaul
tight)
Chapter 42 power steering-steering gear with
8. steering gear (worn or damaged) rocker arm assembly, overhaul
42 Chapter 24 front axle-front wheel hub with brake
9. front wheel bearing (installed reversely) drum assembly, overhaul

10. steering knuckle pin (clearance too small) Chapter 24 front axle-steering knuckle, overhaul
