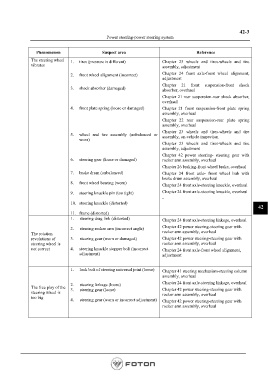

P. 1067

42-3
                                                Power steering-power steering system


                 Phenomenon                   Suspect area                              Reference
               The steering wheel   1.  tires (pressure is different)    Chapter  23  wheels and tires-wheels and tire
               vibrates                                                  assembly, adjustment

                                2.  front wheel alignment (incorrect)    Chapter 24  front axle-front wheel alignment,
                                                                         adjustment
                                                                         Chapter  21 front  suspension-front shock
                                3.  shock absorber (damaged)
                                                                         absorber, overhaul
                                                                         Chapter 21 rear suspension-rear shock absorber,
                                                                         overhaul
                                4.  front plate spring (loose or damaged)  Chapter 21 front  suspension-front  plate spring
                                                                         assembly, overhaul
                                                                         Chapter  22 rear suspension-rear plate spring
                                                                         assembly, overhaul
                                                                         Chapter  23  wheels and tires-wheels and tire
                                5.  wheel and tire assembly (unbalanced  or  assembly, on-vehicle inspection
                                    worn)
                                                                         Chapter  23  wheels and tires-wheels and tire
                                                                         assembly, adjustment
                                                                         Chapter  42  power steering- steering gear  with
                                6.  steering gear (loose or damaged)     rocker arm assembly, overhaul
                                                                         Chapter 26 braking-front wheel brake, overhaul
                                7.  brake drum (unbalanced)              Chapter 24 front axle-  front wheel hub  with
                                                                         brake drum assembly, overhaul
                                8.  front wheel bearing (worn)
                                                                         Chapter 24 front axle-steering knuckle, overhaul
                                9.  steering knuckle pin (too tight)     Chapter 24 front axle-steering knuckle, overhaul
                                                                         -
                                10.   steering knuckle (distorted)
                                                                                                                    42
                                11.  frame (distorted)
                                1.  steering drag link (distorted)       Chapter 24 front axle-steering linkage, overhaul

                                2.  steering rocker arm (incorrect angle)  Chapter 42 power steering-steering gear with
               The rotation                                              rocker arm assembly, overhaul
               revolutions of   3.  steering gear (worn or damaged)      Chapter 42 power steering-steering gear with
               steering wheel is                                         rocker arm assembly, overhaul
               not correct      4.  steering knuckle stopper bolt (incorrect  Chapter 24 front axle-front wheel alignment,
                                    adjustment)                          adjustment


                                1.  lock bolt of steering universal joint (loose)  Chapter 41 steering mechanism-steering column
                                                                         assembly, overhaul
                                2.  steering linkage (loose)             Chapter 24 front axle-steering linkage, overhaul
               The free play of the   3.  steering gear (loose)          Chapter 42 power steering-steering gear with
               steering wheel is                                         rocker arm assembly, overhaul
               too big
                                4.  steering gear (worn or incorrect adjustment)  Chapter 42 power steering-steering gear with
                                                                         rocker arm assembly, overhaul
