Power steering-power steering system

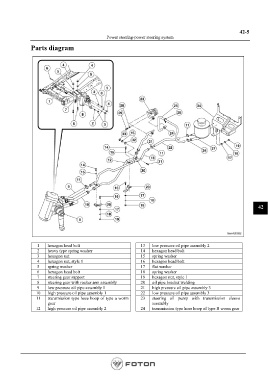

Parts diagram
42
1 hexagon head bolt 13 low pressure oil pipe assembly 2
2 heavy type spring washer 14 hexagon head bolt
3 hexagon nut 15 spring washer
4 hexagon nut, style 1 16 hexagon head bolt
5 spring washer 17 flat washer
6 hexagon head bolt 18 spring washer
7 steering gear support 19 hexagon nut, style 1
8 steering gear with rocker arm assembly 20 oil pipe bracket welding
9 low pressure oil pipe assembly 1 21 high pressure oil pipe assembly 3
10 high pressure oil pipe assembly 1 22 low pressure oil pipe assembly 3
11 transmission type hose hoop of type a worm 23 steering oil pump with transmission sleeve
gear assembly
12 high pressure oil pipe assembly 2 24 transmission type hose hoop of type B worm gear
