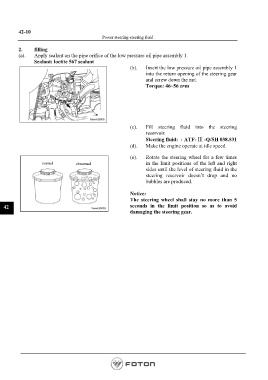

42-10
Power steering-steering fluid

2. filling
(a). Apply sealant on the pipe orifice of the low pressure oil pipe assembly 1.
Sealant: loctite 567 sealant
(b). Insert the low pressure oil pipe assembly 1
into the return opening of the steering gear
and screw down the nut.
Torque: 46~56 n•m

(c). Fill steering fluid into the steering
reservoir.
Steering fluid: ：ATF- Ⅲ -Q/SH 038.531
(d). Make the engine operate at idle speed.

(e). Rotate the steering wheel for a few times
normal abnormal in the limit positions of the left and right
sides until the level of steering fluid in the
steering reservoir doesn’t drop and no
bubbles are produced.

Notice:
The steering wheel shall stay no more than 5
42 seconds in the limit position so as to avoid
damaging the steering gear.
