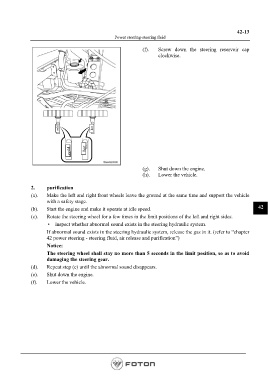

Page 1077 - Workshop Manual - Aumark (BJ1051)

42-13
Power steering-steering fluid

(f). Screw down the steering reservoir cap
clockwise.

cold hot

cold hot

(g). Shut down the engine.
(h). Lower the vehicle.

2. purification
(a). Make the left and right front wheels leave the ground at the same time and support the vehicle
with a safety stage.
(b). Start the engine and make it operate at idle speed. 42
(c). Rotate the steering wheel for a few times in the limit positions of the left and right sides.
• inspect whether abnormal sound exists in the steering hydraulic system.
If abnormal sound exists in the steering hydraulic system, release the gas in it. (refer to “chapter
42 power steering - steering fluid, air release and purification”)
Notice:
The steering wheel shall stay no more than 5 seconds in the limit position, so as to avoid
damaging the steering gear.
(d). Repeat step (c) until the abnormal sound disappears.
(e). Shut down the engine.
(f). Lower the vehicle.

Page 1077
