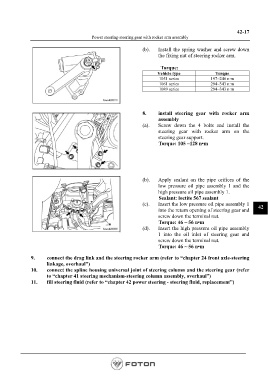

Page 1081 - Workshop Manual - Aumark (BJ1051)

42-17
Power steering-steering gear with rocker arm assembly

(b). Install the spring washer and screw down
the fixing nut of steering rocker arm.

Torque:
Vehicle type Torque
1051 series 197~246 n·m
1061 series 294~343 n·m
1089 series 294~343 n·m

8. install steering gear with rocker arm
assembly
(a). Screw down the 4 bolts and install the
steering gear with rocker arm on the
steering gear support.
Torque: 105 ~128 n•m

(b). Apply sealant on the pipe orifices of the
low pressure oil pipe assembly 1 and the
high pressure oil pipe assembly 1.
Sealant: loctite 567 sealant
(c). Insert the low pressure oil pipe assembly 1 42
into the return opening of steering gear and
screw down the terminal nut.
Torque: 46 ~ 56 n•m
(d). Insert the high pressure oil pipe assembly
1 into the oil inlet of steering gear and
screw down the terminal nut.
Torque: 46 ~ 56 n•m

9. connect the drag link and the steering rocker arm (refer to “chapter 24 front axle-steering
linkage, overhaul”)
10. connect the spline housing universal joint of steering column and the steering gear (refer
to “chapter 41 steering mechanism-steering column assembly, overhaul”)
11. fill steering fluid (refer to “chapter 42 power steering - steering fluid, replacement”)
