42-22
Power steering-hydraulic circuit

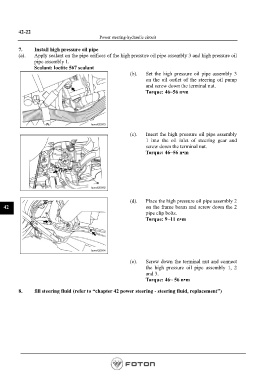

7. Install high pressure oil pipe
(a). Apply sealant on the pipe orifices of the high pressure oil pipe assembly 3 and high pressure oil
pipe assembly 1.
Sealant: loctite 567 sealant
(b). Set the high pressure oil pipe assembly 3
on the oil outlet of the steering oil pump
and screw down the terminal nut.
Torque: 46~56 n•m

(c). Insert the high pressure oil pipe assembly
1 into the oil inlet of steering gear and
screw down the terminal nut.
Torque: 46~56 n•m

(d). Place the high pressure oil pipe assembly 2
42 on the frame beam and screw down the 2
pipe clip bolts.
Torque: 9~11 n•m

(e). Screw down the terminal nut and connect
the high pressure oil pipe assembly 1, 2
and 3.
Torque: 46~ 56 n•m

8. fill steering fluid (refer to “chapter 42 power steering - steering fluid, replacement”)
