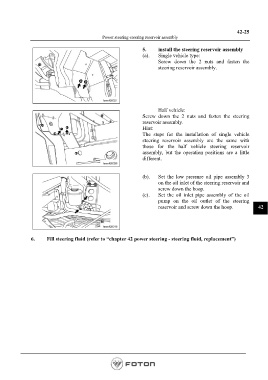

Page 1089 - Workshop Manual - Aumark (BJ1051)

42-25
Power steering-steering reservoir assembly

5. install the steering reservoir assembly
(a). Single vehicle type:
Screw down the 2 nuts and fasten the
steering reservoir assembly.

Half vehicle:
Screw down the 2 nuts and fasten the steering
reservoir assembly.
Hint:
The steps for the installation of single vehicle
steering reservoir assembly are the same with
those for the half vehicle steering reservoir
assembly, but the operation positions are a little
different.

(b). Set the low pressure oil pipe assembly 3
on the oil inlet of the steering reservoir and
screw down the hoop.
(c). Set the oil inlet pipe assembly of the oil
pump on the oil outlet of the steering
reservoir and screw down the hoop. 42

6. Fill steering fluid (refer to “chapter 42 power steering - steering fluid, replacement”)
