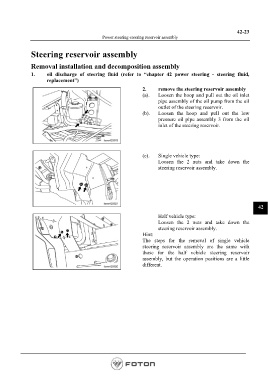

Page 1087 - Workshop Manual - Aumark (BJ1051)

42-23
Power steering-steering reservoir assembly

Steering reservoir assembly

Removal installation and decomposition assembly

1. oil discharge of steering fluid (refer to “chapter 42 power steering - steering fluid,
replacement”)

2. remove the steering reservoir assembly
(a). Loosen the hoop and pull out the oil inlet
pipe assembly of the oil pump from the oil
outlet of the steering reservoir.
(b). Loosen the hoop and pull out the low
pressure oil pipe assembly 3 from the oil
inlet of the steering reservoir.

(c). Single vehicle type:
Loosen the 2 nuts and take down the
steering reservoir assembly.

42

Half vehicle type:
Loosen the 2 nuts and take down the
steering reservoir assembly.
Hint:
The steps for the removal of single vehicle
steering reservoir assembly are the same with
those for the half vehicle steering reservoir
assembly, but the operation positions are a little
different.
