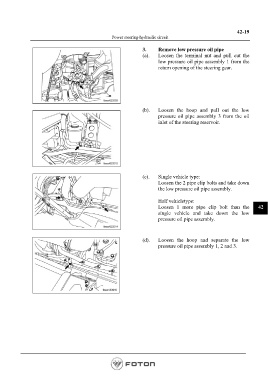

42-19
Power steering-hydraulic circuit
3. Remove low pressure oil pipe
(a). Loosen the terminal nut and pull out the
low pressure oil pipe assembly 1 from the
return opening of the steering gear.
(b). Loosen the hoop and pull out the low
pressure oil pipe assembly 3 from the oil
inlet of the steering reservoir.
(c). Single vehicle type:
Loosen the 2 pipe clip bolts and take down
the low pressure oil pipe assembly.
Half vehicletype:
Loosen 1 more pipe clip bolt than the 42
single vehicle and take down the low
pressure oil pipe assembly.
(d). Loosen the hoop and separate the low
pressure oil pipe assembly 1, 2 and 3.
