P. 1082
42-18

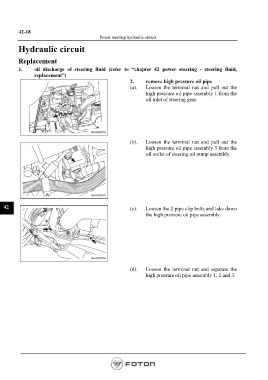

Power steering-hydraulic circuit
Hydraulic circuit
Replacement
1. oil discharge of steering fluid (refer to “chapter 42 power steering - steering fluid,
replacement”)
2. remove high pressure oil pipe
(a). Loosen the terminal nut and pull out the
high pressure oil pipe assembly 1 from the
oil inlet of steering gear.
(b). Loosen the terminal nut and pull out the
high pressure oil pipe assembly 3 from the
oil outlet of steering oil pump assembly.
42 (c). Loosen the 2 pipe clip bolts and take down
the high pressure oil pipe assembly.
(d). Loosen the terminal nut and separate the
high pressure oil pipe assembly 1, 2 and 3.
