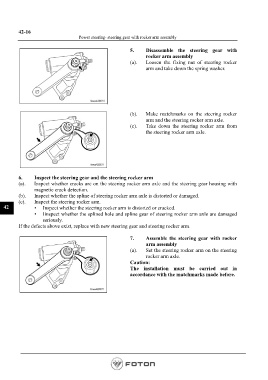

Page 1080 - Workshop Manual - Aumark (BJ1051)

42-16
Power steering- steering gear with rocker arm assembly

5. Disassemble the steering gear with
rocker arm assembly
(a). Loosen the fixing nut of steering rocker
arm and take down the spring washer.

(b). Make matchmarks on the steering rocker
arm and the steering rocker arm axle.
(c). Take down the steering rocker arm from
the steering rocker arm axle.

6. Inspect the steering gear and the steering rocker arm
(a). Inspect whether cracks are on the steering rocker arm axle and the steering gear housing with
magnetic crack detection.
(b). Inspect whether the spline of steering rocker arm axle is distorted or damaged.
(c). Inspect the steering rocker arm.
42 • Inspect whether the steering rocker arm is distorted or cracked.
• Iinspect whether the splined hole and spline gear of steering rocker arm axle are damaged
seriously.
If the defects above exist, replace with new steering gear and steering rocker arm.

7. Assemble the steering gear with rocker
arm assembly
(a). Set the steering rocker arm on the steering
rocker arm axle.
Caution:
The installation must be carried out in
accordance with the matchmarks made before.
