42-15

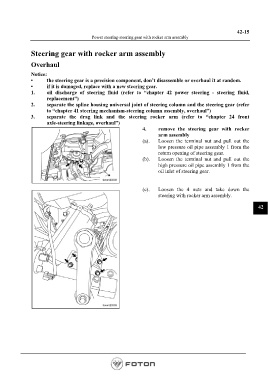

                                          Power steering-steering gear with rocker arm assembly


               Steering gear with rocker arm assembly

               Overhaul

               Notice:
               •      the steering gear is a precision component, don’t disassemble or overhaul it at random.
               •      if it is damaged, replace with a new steering gear.
               1.     oil discharge of steering fluid (refer to “chapter 42  power steering - steering fluid,
                      replacement”)
               2.     separate the spline housing universal joint of steering column and the steering gear (refer
                      to “chapter 41 steering mechanism-steering column assembly, overhaul”)
               3.     separate the drag  link  and the steering  rocker arm (refer to “chapter 24 front
                      axle-steering linkage, overhaul”)
                                                                4.     remove  the steering gear with rocker
                                                                       arm assembly
                                                                (a).   Loosen the  terminal nut and  pull  out the
                                                                       low pressure oil pipe assembly 1 from the
                                                                       return opening of steering gear.
                                                                (b).   Loosen the  terminal nut and  pull  out the
                                                                       high pressure oil pipe assembly 1 from the
                                                                       oil inlet of steering gear.



                                                                (c).   Loosen  the 4 nuts  and take down  the
                                                                       steering with rocker arm assembly.

                                                                                                                    42
