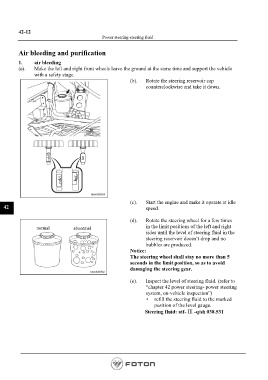

Page 1076 - Workshop Manual - Aumark (BJ1051)

42-12
Power steering-steering fluid

Air bleeding and purification
1. air bleeding
(a). Make the left and right front wheels leave the ground at the same time and support the vehicle
with a safety stage.
(b). Rotate the steering reservoir cap
counterclockwise and take it down.

cold hot

cold hot

(c). Start the engine and make it operate at idle
42 speed.

(d). Rotate the steering wheel for a few times
normal abnormal in the limit positions of the left and right
sides until the level of steering fluid in the
steering reservoir doesn’t drop and no
bubbles are produced.
Notice:
The steering wheel shall stay no more than 5
seconds in the limit position, so as to avoid
damaging the steering gear.

(e). Inspect the level of steering fluid. (refer to
“chapter 42 power steering- power steering
system, on-vehicle inspection”)
• refill the steering fluid to the marked
position of the level gauge.
Steering fluid: atf- Ⅲ -q/sh 038.531

Page 1076
