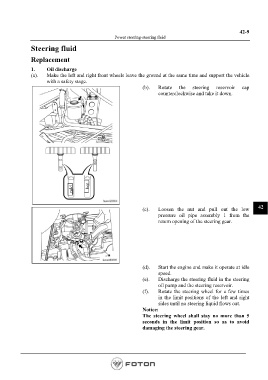

Page 1073 - Workshop Manual - Aumark (BJ1051)

42-9
Power steering-steering fluid
Steering fluid

Replacement

1. Oil discharge
(a). Make the left and right front wheels leave the ground at the same time and support the vehicle
with a safety stage.
(b). Rotate the steering reservoir cap
counterclockwise and take it down.

cold hot

(c). Loosen the nut and pull out the low 42
pressure oil pipe assembly 1 from the
return opening of the steering gear.

(d). Start the engine and make it operate at idle
speed.
(e). Discharge the steering fluid in the steering
oil pump and the steering reservoir.
(f). Rotate the steering wheel for a few times
in the limit positions of the left and right
sides until no steering liquid flows out.
Notice:
The steering wheel shall stay no more than 5
seconds in the limit position so as to avoid
damaging the steering gear.
