P. 1084

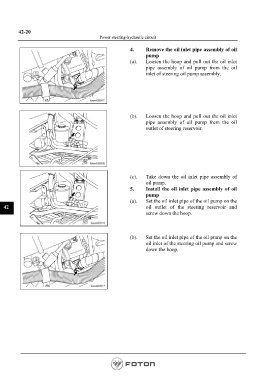

42-20
                                             Power steering-hydraulic circuit

                                                           4.     Remove the oil inlet pipe assembly of oil
                                                                  pump
                                                           (a).   Loosen the hoop and pull out the oil inlet
                                                                  pipe assembly of  oil  pump from the oil
                                                                  inlet of steering oil pump assembly.









                                                           (b).   Loosen the hoop and pull out the oil inlet
                                                                  pipe assembly of  oil  pump from the oil
                                                                  outlet of steering reservoir.











                                                           (c).   Take down  the oil inlet pipe assembly of
                                                                  oil pump.
                                                           5.     Install the oil inlet pipe assembly of oil
                                                                  pump
                                                           (a).   Set the oil inlet pipe of the oil pump on the
   42                                                             oil outlet of the  steering  reservoir  and
                                                                  screw down the hoop.





                                                           (b).   Set the oil inlet pipe of the oil pump on the
                                                                  oil inlet of the steering oil pump and screw
                                                                  down the hoop.
