P. 1167

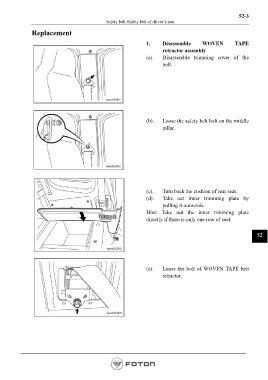

52-3
Safety belt-Safety belt of driver’s seat
Replacement
1. Disassemble WOVEN TAPE
retractor assembly
(a). Disassemble trimming cover of the
bolt.
(b). Loose the safety belt bolt on the middle
pillar.
(c). Turn back the cushion of rear seat.
(d). Take out inner trimming plate by
pulling it outwards.
Hint: Take out the inner trimming plate
directly if there is only one row of seat.
52
(e). Loose the bolt of WOVEN TAPE belt
retractor.
