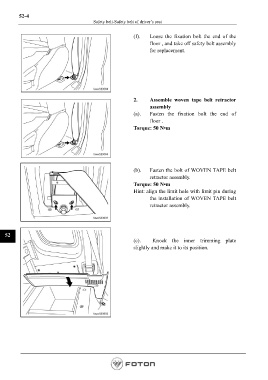

52-4
Safety belt-Safety belt of driver’s seat

(f). Loose the fixation bolt the end of the
floor , and take off safety belt assembly
for replacement.

2. Assemble woven tape belt retractor
assembly
(a). Fasten the fixation bolt the end of
floor .
Torque: 50 N•m

(b). Fasten the bolt of WOVEN TAPE belt
retractor assembly.
Torque: 50 N•m
Hint: align the limit hole with limit pin during
the installation of WOVEN TAPE belt
retractor assembly.

52
(c). Knock the inner trimming plate
slightly and make it to its position.
