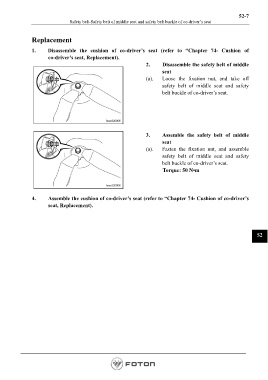

Page 1171 - Workshop Manual - Aumark (BJ1051)
P. 1171
52-7
Safety belt-Safety belt of middle seat and safety belt buckle of co-driver’s seat
Replacement
1. Disassemble the cushion of co-driver’s seat (refer to “Chapter 74- Cushion of
co-driver’s seat, Replacement).
2. Disassemble the safety belt of middle
seat
(a). Loose the fixation nut, and take off
safety belt of middle seat and safety
belt buckle of co-driver’s seat.
3. Assemble the safety belt of middle
seat
(a). Fasten the fixation nut, and assemble
safety belt of middle seat and safety
belt buckle of co-driver’s seat.
Torque: 50 N•m
4. Assemble the cushion of co-driver’s seat (refer to “Chapter 74- Cushion of co-driver’s
seat, Replacement).
52
Page 1171
