Battery-Battery
Structure

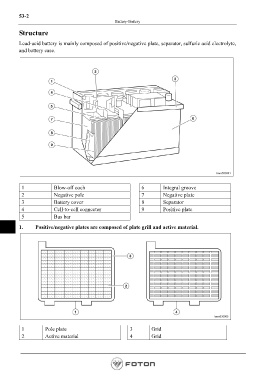

Lead-acid battery is mainly composed of positive/negative plate, separator, sulfuric acid electrolyte,
and battery case.
1 Blow-off coch 6 Integral groove
2 Negative pole 7 Negative plate
3 Battery cover 8 Separator
4 Cell-to-cell connector 9 Positive plate
5 Bus bar
1. Positive/negative plates are composed of plate grill and active material.
1 Pole plate 3 Grid
2 Active material 4 Grid
